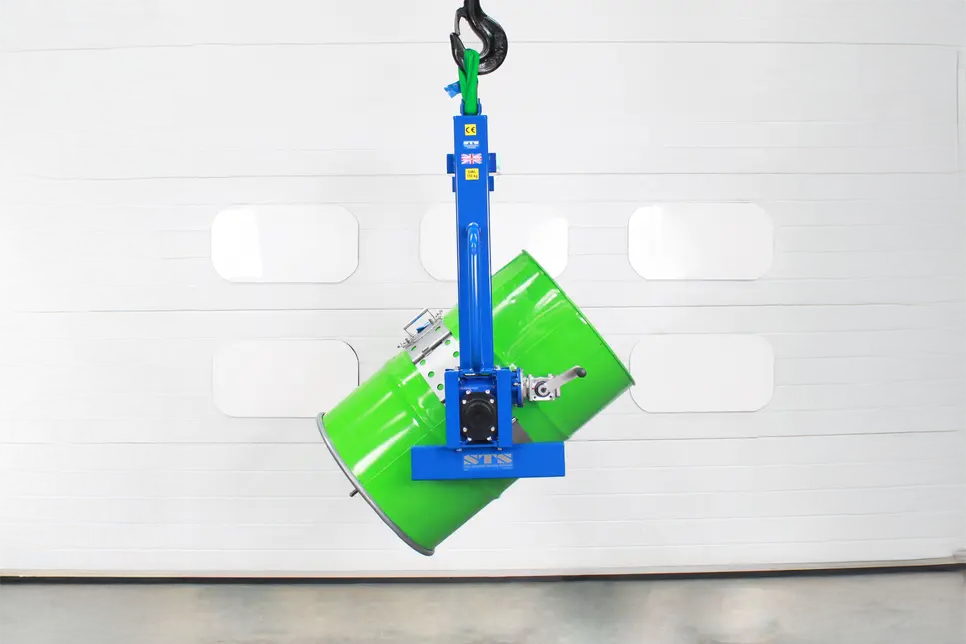

Overhead Drum Rotator (Universal Band)
Product Code: DRU02
This unique drum handler can be used below hook with your hoist or crane and as a forklift attachment. This model uses STS’s trademark variable band, accommodating drums from as small as 13 Gallons (50 liters) up to 55 gallons (220 liters), whether steel, plastic or fiber. The rim-locking device provides a second securing method, eliminating any risk of the drum slipping while being decanted.

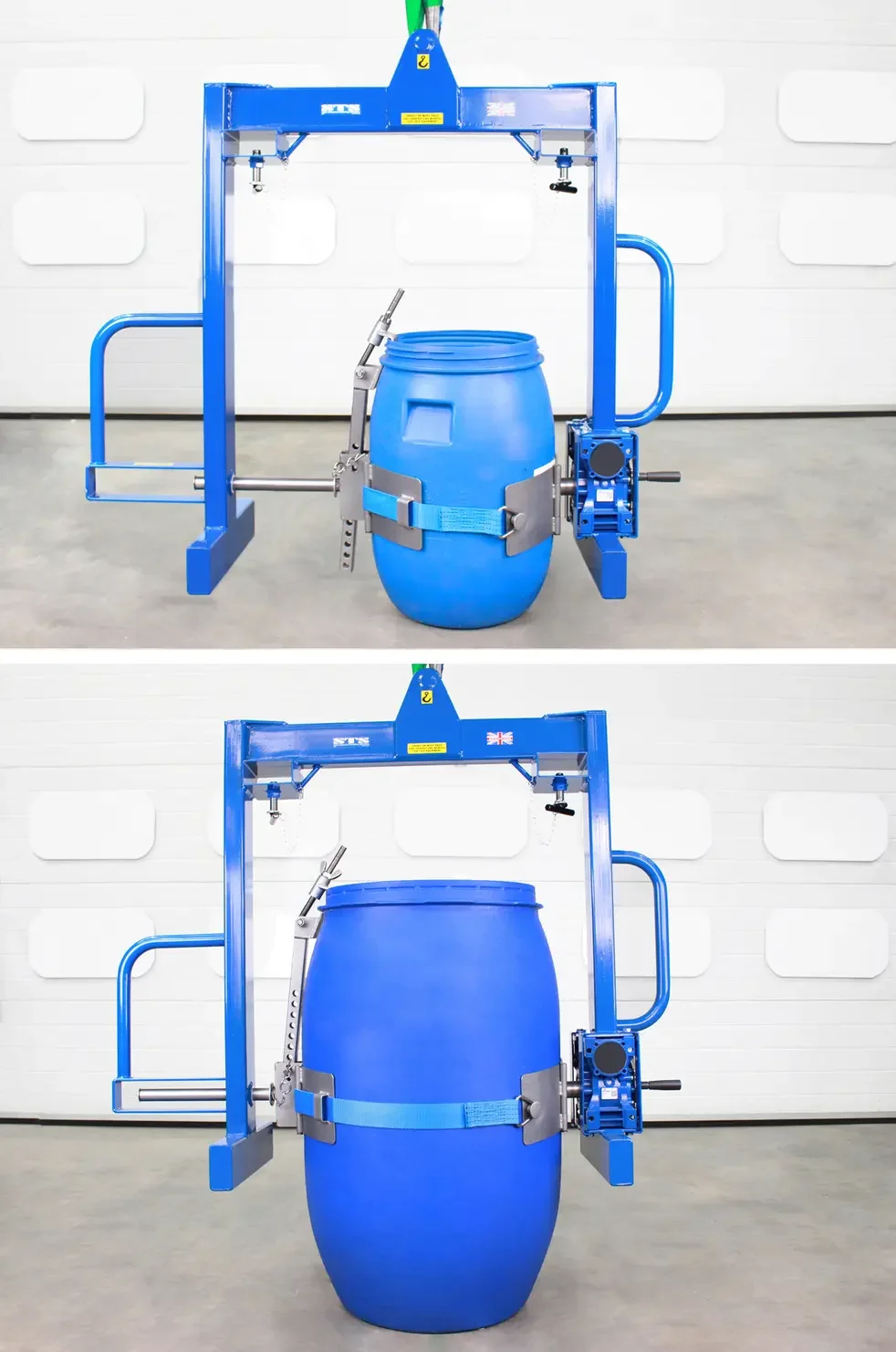

Clamping pad designs
This model can be tailored to suit your process and how you need to handle your drums. The unique flexible rubber clamping pads are designed to be used with a variety of drum types and sizes 11”-24” (280mm to 610mm) in diameter. The clamping pads can also be configured to allow 55 gallon (205 liter) drums to be removed from the corner of a pallet if this is a requirement.
The drum rotator comes with a rim-locking device, which attaches to the lip of the drum to add a second level of security. This allows you to safely handle a vast range of drums, some of which cannot be handled by other equipment on the market.
Rim-clamp securing system

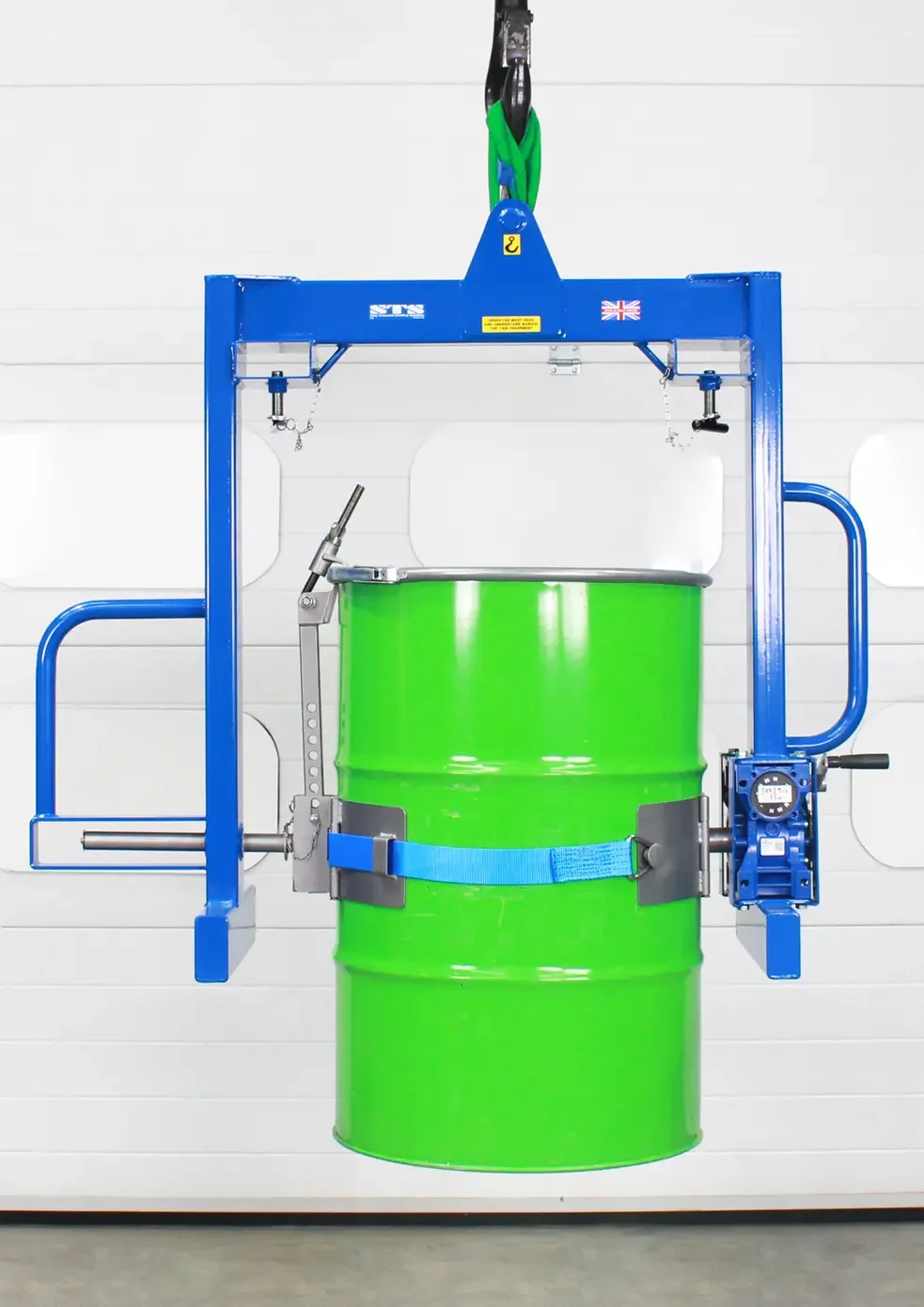

The clamping band comes with a sliding pivot, allowing you to quickly adjust the diameter of the band to fit various drum sizes. This is especially useful if you work with a variety of drums in your process.
Sliding pivot

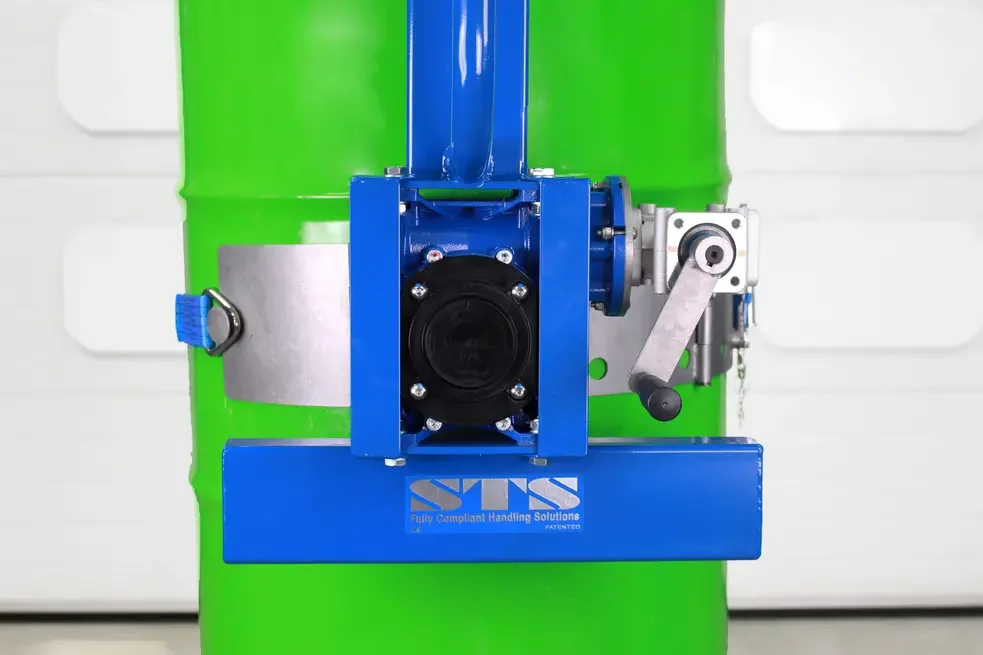

Self-locking gearbox
The drum rotator comes with a rim-locking device, which attaches to the lip of the drum to add a second level of security. This allows you to safely handle a vast range of drums, some of which cannot be handled by other equipment on the market.
Large lifting pin and fork pockets
With multiple pick-up points, the DRU02 is a great choice if you need a versatile drum rotator. When you’re using an overhead crane the large lifting pin provides a secure fixing point, while fork pockets allow you to mount the unit on a forklift truck.
Drum Suitability
Our Overhead Drum Rotator is suitable for a wide range of drum types, sizes and materials. For a detailed list of compatible drum types, see the drum suitability document below.
Optional Features
Stainless steel
This model can be supplied in 304-grade stainless steel, suitable for good manufacturing practice (GMP) areas as well as clean rooms.
EX / ATEX
Suitable for use in hazardous zoned areas. The DRU02-SS-EX is constructed from 304 grade stainless steel. Eliminates any thermic-strike risk. Suitable for gas and dust areas.
Fixed-size drum band
If you’re only handling 52 gallon to 58 gallon (200-to 220-liter) steel and plastic drums, our fixed over-center drum band makes securing and handling drums quicker.
Load cell weighing system
We are able to offer an Overhead Drum Rotator with an integrated load-cell. Weigh drums at the same time as you decant from them using the unique system.
-
Safe working load (SWL)
771 lb. (350kg)
Drum compatibility
Steel and plastic drums, 13-58 gallon (50-220 liters) (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 1.96” (50mm) stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Mild steel chassis, stainless steel rotator band assembly
Metal preparation
Grit blasted mild steel, aqua blasted and vibro-polished stainless steel parts
Surface finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Powder coat color
RAL 5010 (blue)
Compatible with forklift truck
Yes, fork pockets included
Compatible with overhead crane
Yes, large lifting pin
Compliance
CE / UKCA
-
Safe working load (SWL)
771 lb. (350kg)
Drum compatibility
Steel and plastic drums, 13-58 gallon (50-220 liters) (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 1.96” (50mm) stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel chassis and rotator band assembly
Metal preparation
Aqua blasted and vibro-polished stainless steel parts
Surface finish
Smooth clean stainless steel finish
Powder coat color
N/A
Compatible with forklift truck
Yes, fork pockets included
Compatible with overhead crane
Yes, large lifting pin
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
