Pneumatic Drum Pourer with Powered Clamp
Product Code: STP01-RRH01-Ex
The ultimate in versatility, our power clamp drum tipper can lift and pour drums and barrels from 13-50 gallons (50 to 220 liters). This unit is pneumatic-hydraulic powered and suitable for ATEX / UKEX areas; gas and dust zones 1, 2, 21 and 22. An air line connection provides air to the system which powers all the hydraulic functions.

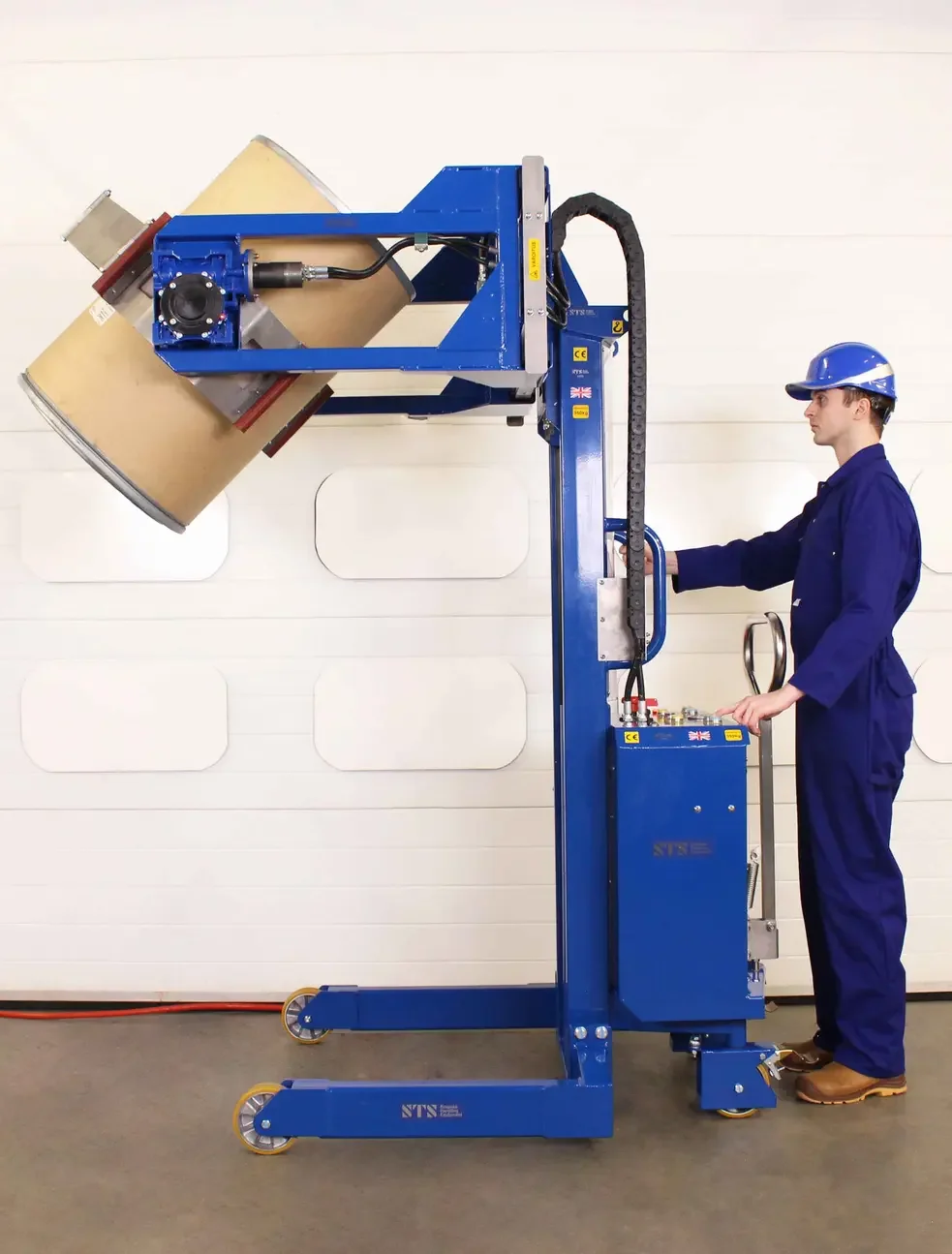

Our electrical engineers install safe and compliant circuits in every machine we manufacture. Each circuit includes mandatory features such as emergency stop buttons and key switch power isolators. Each and every power clamp model includes a hydraulic clamp pressure gauge. This gauge is used to monitor the clamp pressure during lifting operations ensuring drums remains secure at all times.
Fully compliant electrical circuits
Powered drum clamp and forward rotation
Unlike a banded drum tipping model, this unit has a greater level of powered functionality. Operators wheel the unit towards a drum (located on the floor or the corner of a pallet), clamp the pads around the drum and then lift and tip the contents into a process vessel or secondary container. Powered functions reduce the need for manual interaction with the drum, this is beneficial in saving time and thus improves overall manufacturing cycle times.
Clamping pad designs
This model can be tailored to suit your process and how you need to handle your drums. Our unique flexible rubber clamping pads are designed to be used with a variety of drum types and sizes 11”-24” (280mm to 610mm) in diameter. The clamping pads can also be configured to allow 55 gallon (205-liter) drums to be removed from the corner of a pallet if this is a requirement.
Maximum control and low rolling resistance are achieved using a rear-wheel steering design. The wheels we specify each contain two precision bearings and are 6.29” (160mm) in diameter. Both rear wheels feature foot-operated park brakes which keep the unit stationary when near a process vessel or not in use. Bespoke leg dimensions can be offered should you need to straddle a certain pallet size or fit the legs beneath a machine or vessel.
Controllable rear-wheel steering
Power clamp drum suitability
Designed to be as versatile as possible, this power-clamp model can handle a wide range of drum types and sizes. The clamping pads can be provided for handling drums and barrels with a diameter range of between 11” (280mm) and 24.” (610mm). The system has been designed to handle drums of up to 39.37” (1000mm) in height; this covers the majority of drum types used in the market.
Technical Specifications
STP01-RRH01-Ex Power Clamp Drum Tipper (Pneumatic - ATEX)
Safe working load (SWL) - 771lb. (300kg)
Functions - Powered lift/lower, powered clamp, powered rotation, manual push/pull
Power details - Air powered - requires min: 105gallons/min (400L/min), optimum: 200 gallons/min (760L/min) at 6 bar with 1/2” (13mm) flexible air hose
Controls - Silicone booted control buttons and emergency stop
Lift height - 59” (1500mm)
Tipping clearance - 57.8” (1470mm) at 15° tip angle / 55” (1400mm) at 30° tip angle 55 gallon (205 liter drum)
Drum compatibility - Steel and plastic drums, 13-58 gallon (50-220 liters) (incl. MAUSER drums)
Clamping head - Hydraulic constant-tension clamping head with pressure gauge for handling all drum types - ‘hands off’ drum handling solution
Powered Rotation - Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction - Mild steel with stainless steel arm covers and clamping pads
Metal preparation - Grit blasted mild steel, aqua blasted and vibro-polished stainless steel parts
Surface finish - Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Powder coat color - RAL 5010 (blue)
Guarding - Polycarbonate shatterproof clear guarding
Leg dimensions - Inside straddle width 33.46” (850mm), total outside width 42.5” (1080mm)
Front wheels - Two fixed 6.29” (160mm) wheels, aluminum centered with polyurethane tires and precision bearings
Rear wheels - Two tiller steered 6.29” (160mm) wheels, aluminum centered with polyurethane tires and precision bearings
Noise - Less than 76 dBA
Compliance - CE / UKCA / ATEX / UKEX (zones 1, 2, 21, 22)
Optional Features
Stainless steel
This model can be supplied in 304-grade stainless steel, suitable for good manufacturing practice (GMP) areas as well as clean rooms.
Telescopic variable lift height
Up to 59” (1500mm) of lift height is provided as standard with this model. A telescopic model can also be supplied for tall-lift applications of up to 106” (2700mm).
Variable leg dimensions
We can offer custom leg configurations to suit a variety of applications and usage requirements.
Load-cell weighing system
With our wireless load-cell system you can weigh drums while you lift and tip them. A wireless handheld display shows the drum weight in real time.
Power-drive system
When handling many drums per day and traveling over long distances you may require power drive. Our power-drive variant is easy to use and will speed up operations.
