Stainless-Steel Drum Pourer (Manual)
Product Code: STM01-DRU01-SS

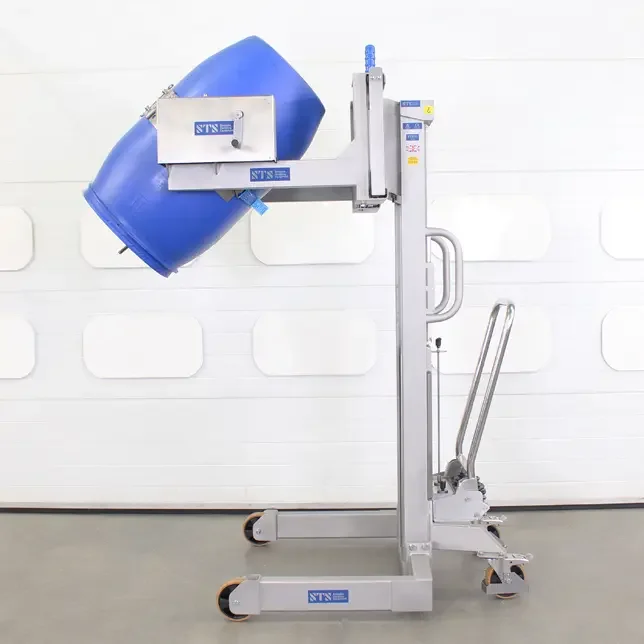

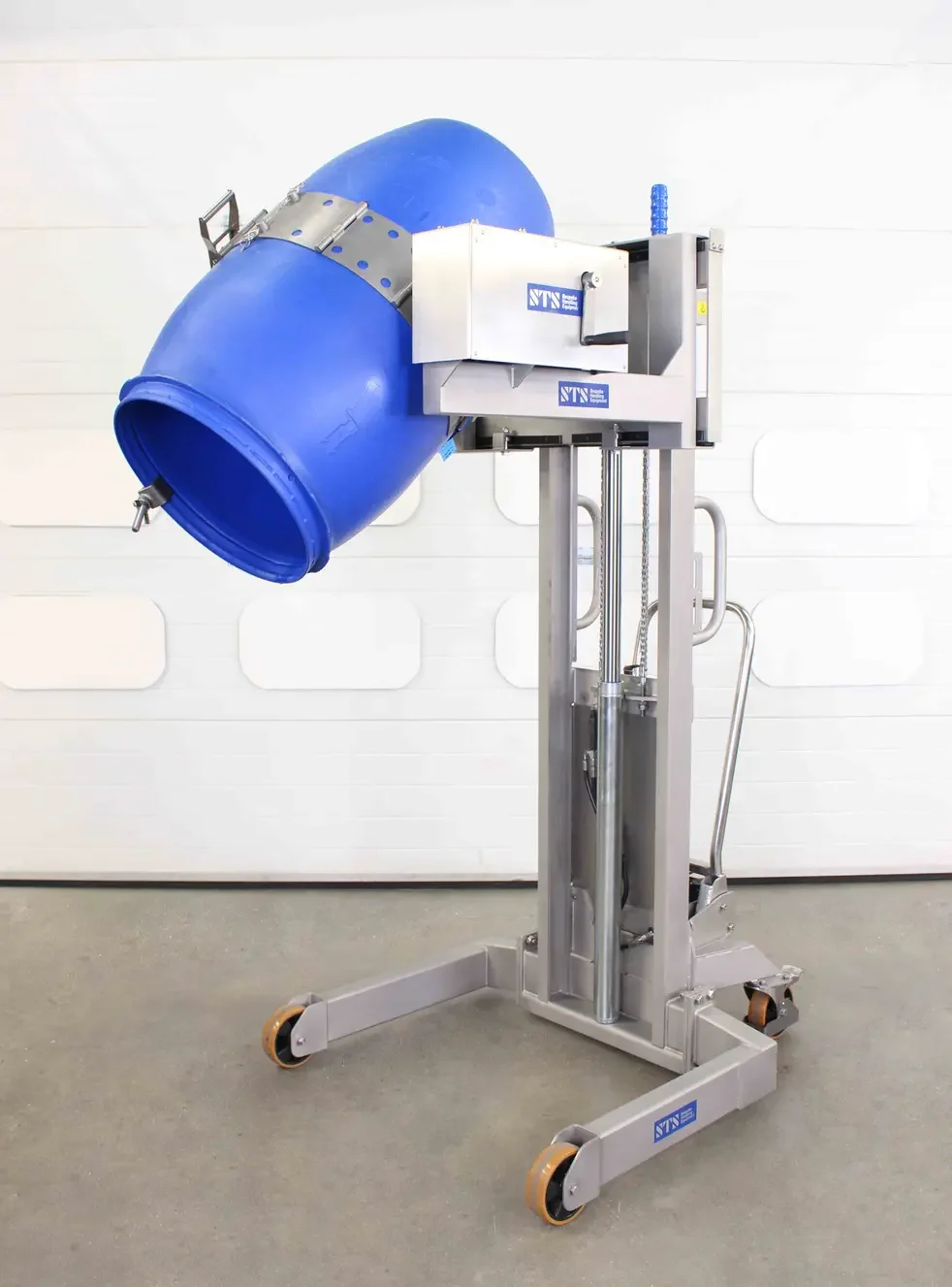

This manual-hydraulic drum rotator allows operators to ergonomically lift and decant drums of various sizes. The stainless-steel 304-grade construction is ideally suited to both food and pharmaceutical environments thanks to a smooth and clean vibro-polished finish.
In the base of the chassis, two manual-hydraulic 13cc hydraulic pumps supply the lifting ram with oil to raise the drum. These pumps are operated by pumping the handle at the rear of the unit. Designed to be ergonomic, the pumps require minimal force, adhering to manual handling guidelines.
Lowering the drum is achieved by turning a lowering lever counter-clockwise. For operations exceeding 10 drums per day, we advise considering our electric or pneumatic models as a powered alternative. These powered models further enhance efficiency and reduce physical fatigue if handling many drums per day.
Manual hydraulic pump

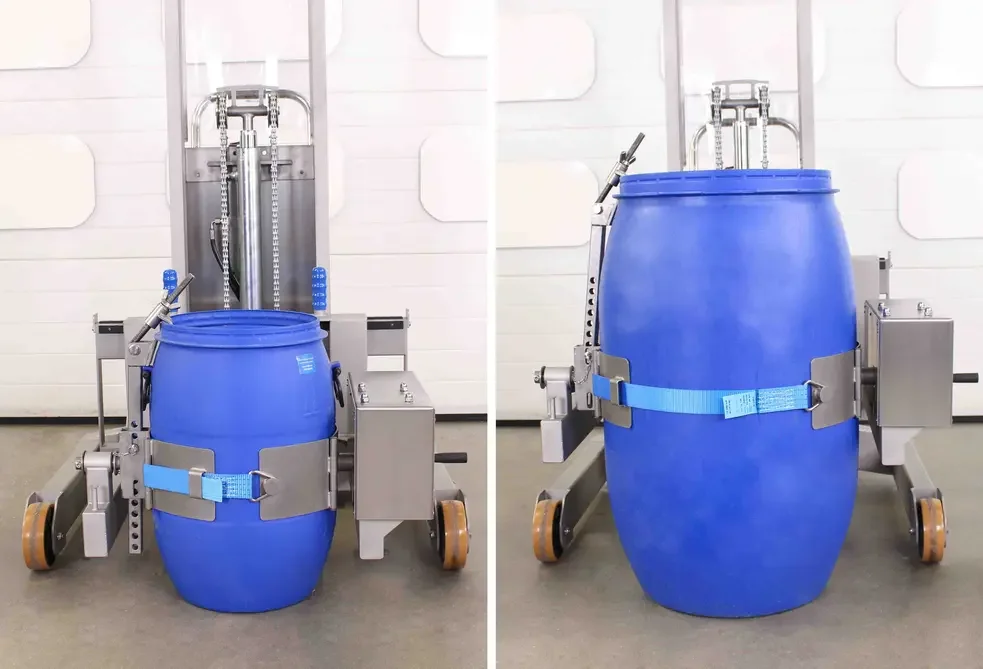

The STS universal drum band, equipped with this model, features an adjustable modular design suitable for a wide range of drum types and sizes. This innovative design ensures optimal contact with the drum, regardless of its size, providing a secure and safe fastening system. The adaptable band comfortably accommodates drums ranging from 13.78” (350mm) to 23.6” (600mm) in diameter, ensuring it can manage steel, plastic, and fiberboard materials effectively.
Universal drum band
When lifting and decanting from heavy drums, maintaining control of the drum is crucial for safety. In our analyses of older machinery in the field, we've identified a common issue: many use rotation mechanisms that fail to allow operators to safely control the load during rotation. This poses significant risks to operator safety.
At STS, safety is our top priority. We have developed a self-locking rotational gearbox arrangement that greatly enhances safety compared to traditional designs. The unique self-locking feature of our worm-wheel gearbox ensures that the drum remains stationary when the handle is released. Additionally, the 120:1 gearbox ratio makes manual turning easy, accommodating operators of various sizes and strength levels. This innovative design not only improves safety but also makes operation smoother and more controlled.
Controllable gearbox rotation

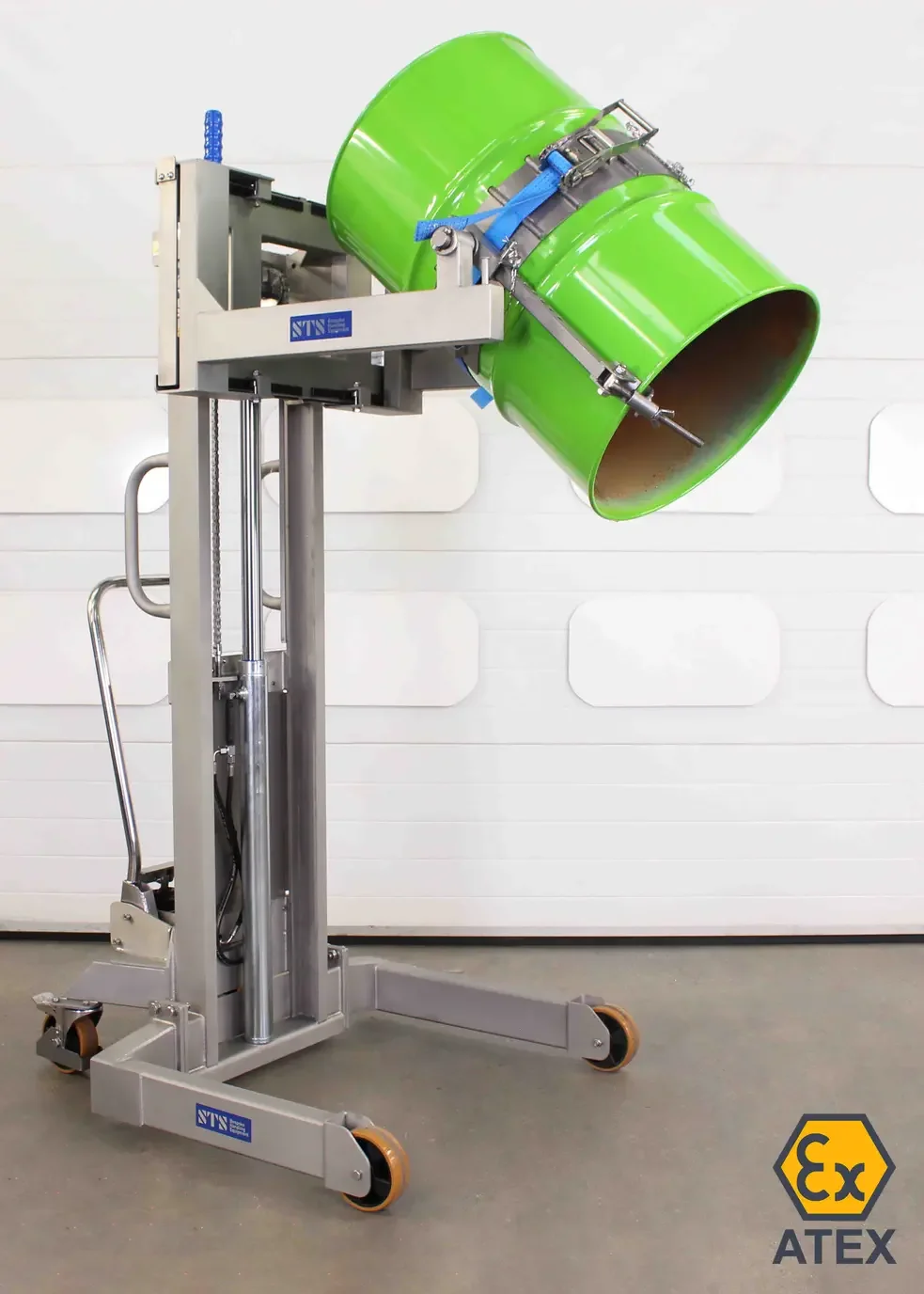

ATEX / UKEX-certified for gas and dust zones 1, 2, 21 and 22 (optional)
If you operate within a zoned flammable or explosive area, rest assured, our expertise in ATEX-certified equipment positions us to meet the stringent demands of large multinational companies.
All our manual-hydraulic and pneumatic-hydraulic drum rotators are provided with both ATEX and UKEX certification, ensuring they are safe for use in zones 1, 2, 21, and 22. Our 'Ex-rated' units are meticulously crafted to maintain electrical continuity, vital for preventing ignition in hazardous environments. Each piece of equipment is accompanied by a Declaration of Conformity, affirming compliance with all relevant British and ISO Standards.
This stainless steel manual drum rotator is compatible with a wide variety of drum types and sizes. For a detailed list of these drums, please view our drum suitability document by clicking the button below.
With decades of experience, we've encountered thousands of different drum handling applications. If you need to handle any unusual drum types or sizes, or if you are in any doubt, please get in touch for advice.
Handles a wide range of drums
Technical Specifications
-
Safe working load (SWL)
771lb. (350kg)
Functions
Manual lift/lower, manual rotation, manual push/pull
Manual Hand Pump
Manual-hydraulic hand pump to lift, manual lowering valve to lower, manual rotation, manual push/pull
Lift height
55” (1400mm)
Tipping clearance
55” (1400mm) at 15° tip angle / 52” (1325mm) at 30° tip angle 55 gallon (205 liter drum)
Drum compatibility
Steel and plastic drums, 13-55 gallon (50-220 litrer) (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 1.9” (50mm) stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp is included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminum hand pump assembly in stainless steel shroud
Metal treatment
Vibro-polished stainless steel parts, smooth clean finish
Guarding
Polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 33.46” (850mm), total outside width 42.5” (1080mm)
Front wheels
Two fixed 6.29” (160mm) wheels, plastic centered with polyurethane tires and precision bearings
Rear wheels
Two tiller steered 6.29” (160mm) wheels, plastic centered with polyurethane tires and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
-
Safe working load (SWL)
771lb. (350kg)
Functions
Manual lift/lower, manual rotation, manual push/pull
Manual Hand Pump
Manual-hydraulic hand pump to lift, manual lowering valve to lower, manual rotation, manual push/pull
Lift height
55” (1400mm)
Tipping clearance
55” (1400mm) at 15° tip angle / 52” (1325mm) at 30° tip angle 55 gallon (205 liter drum)
Drum compatibility
Steel and plastic drums, 13-55 gallon (50-220 litrer) (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 1.9” (50mm) stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp is included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminum hand pump assembly in stainless steel shroud
Metal treatment
Vibro-polished stainless steel parts, smooth clean finish
Guarding
Polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 33.46” (850mm), total outside width 42.5” (1080mm)
Front wheels
Two fixed 6.29” (160mm) wheels, plastic centered with polyurethane tires and precision bearings
Rear wheels
Two tiller steered 6.29” (160mm) wheels, plastic centered with polyurethane tires and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA ATEX / UKEX (Zones 1, 2, 31, 22)
Optional Features
EX
We can offer an ATEX / UKEX version of this drum rotator model, suitable for use in zone 1, 2, 21 and 22 environments.
Fixed-size drum band
If you’re only handling 52-55 gallon (200-220-liter) steel and plastic drums, our fixed over-center drum band makes securing drums even easier.
Variable leg dimensions
We can offer custom leg configurations to suit a variety of applications and usage requirements.
Load-cell weighing system
With our wireless load-cell system you can weigh drums while you lift and tip them. A wireless handheld display shows the drum weight in real time.
Very small drum insert
If you’re using this drum handling equipment for drums smaller than 13 gallons (50 liters), we can provide an insert that allows you to lift small containers with the universal drum band.
