Stainless-Steel Drum Pourer with Powered Drive & Powered Clamp
Product Code: STE05 / STP05-RRH01-SS-Ex

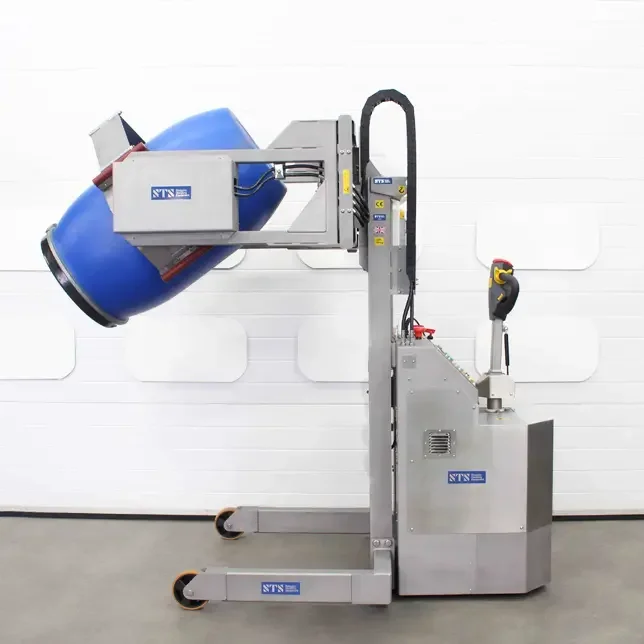

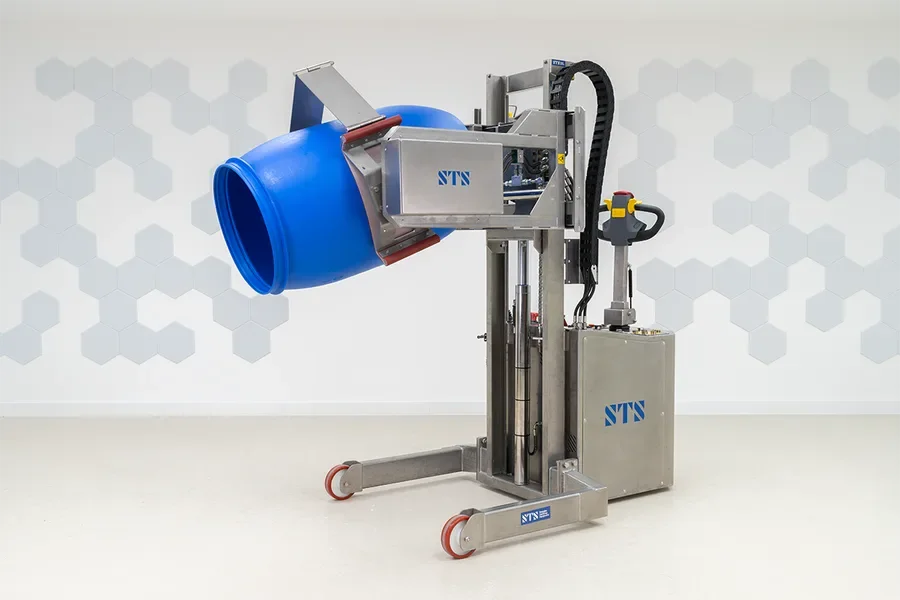

This stainless steel fully-powered drum pourer is suitable for companies that want to increase efficiency and eliminate manual handling risks. We can supply the unit with two powered options: electric-hydraulic which utilizes on-board batteries, or a pneumatic-hydraulic model which can be certified for Zoned explosive areas (ATEX and UKEX ). A power clamp head assembly with flexible pads is fitted to the unit which can handle drums and barrels from 13-58 gallons (50 to 220 liters).
Electric
Suitable for safe areas, this fully-powered drum tipper makes use of an onboard battery bank along with two DC electric motors; one for drive and one for clamp/lift/rotation. When the unit is not in use operators connect a mains power lead to the built-in charger to ensure the unit remains fully charged.
Pneumatic

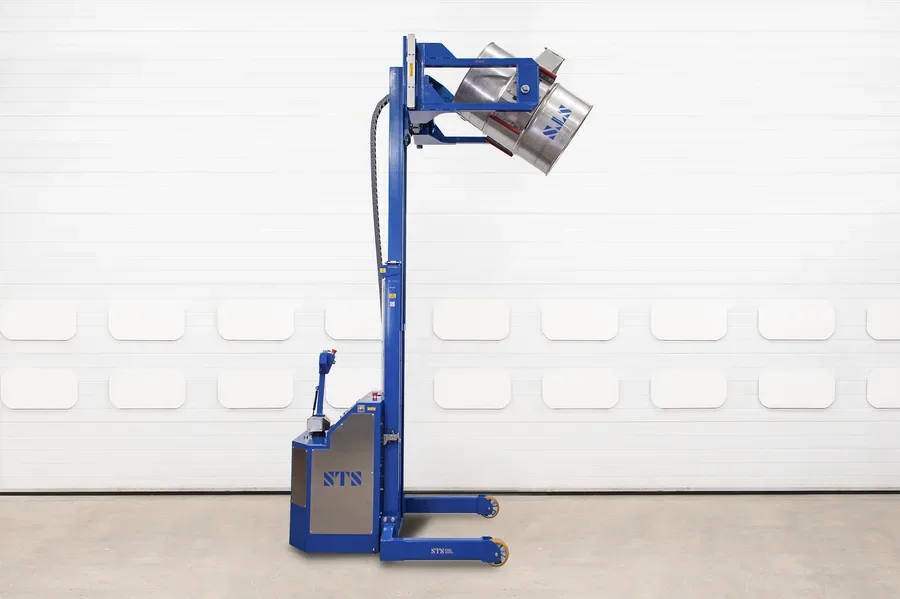

Our pneumatic units can be certified for use in ATEX and UKEX areas, zones 1, 2, 21 and 22. Operators connect an airline to power a pneumatic-hydraulic circuit which powers the lift, clamp, rotation and drive of the unit. Precise drive control is achieved using a sophisticated pneumatic-hydraulic control circuit.
Power drive system

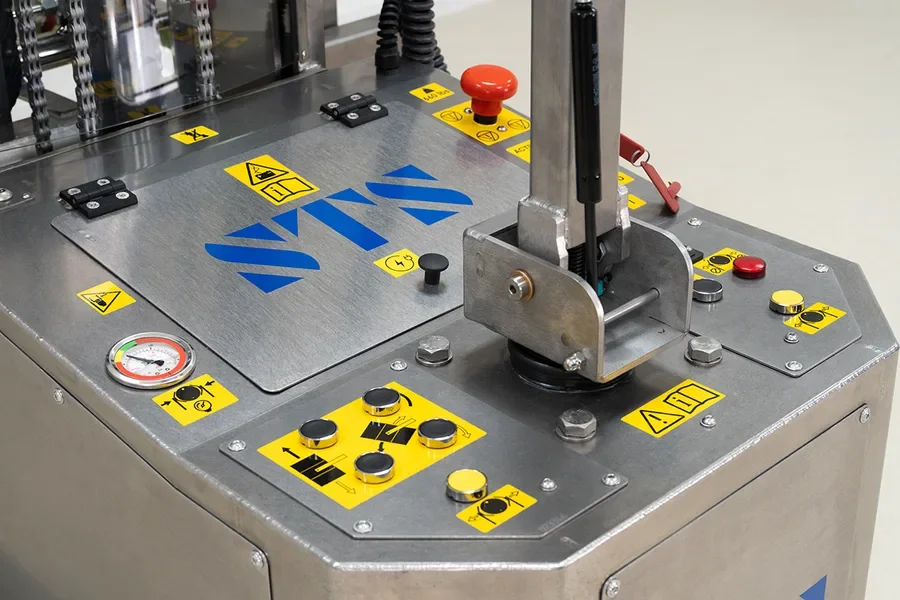

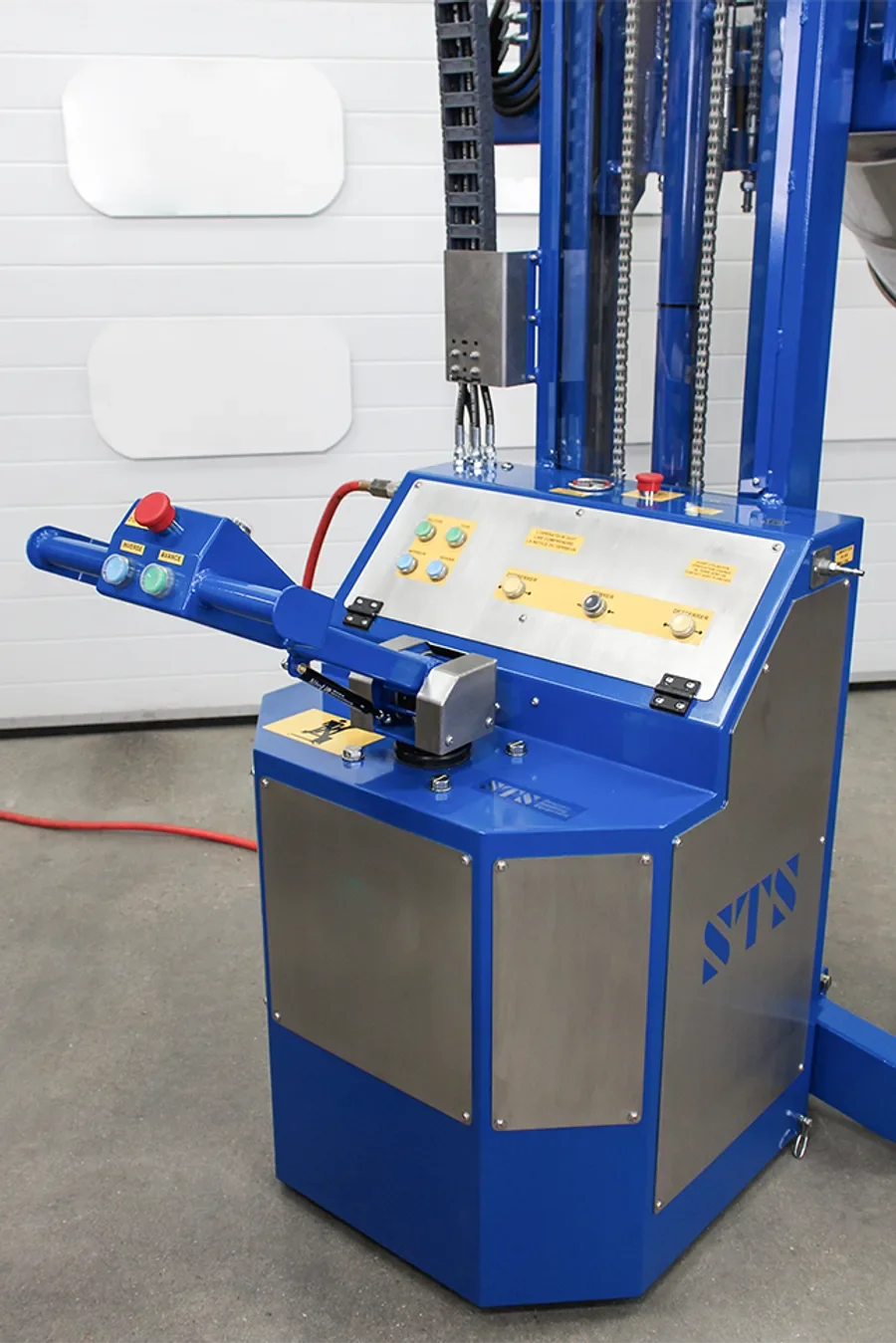

The power drive system on this unit is controlled from the rear of the unit using a steerable tiller. The speed of the drive is adjusted using throttles and an anti-trap switch ensures the operator is kept safe at all times. The rear control panel features a range of push-button controls for the various functions along with a clamp pressure gauge and an emergency stop button for operators to cut off the unit's power if required.

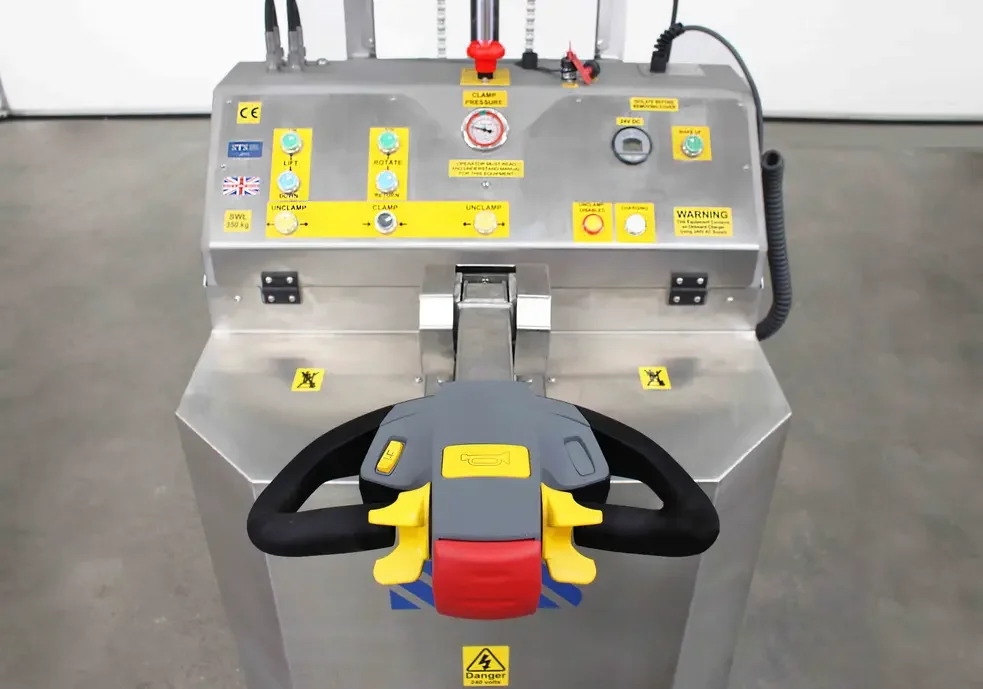

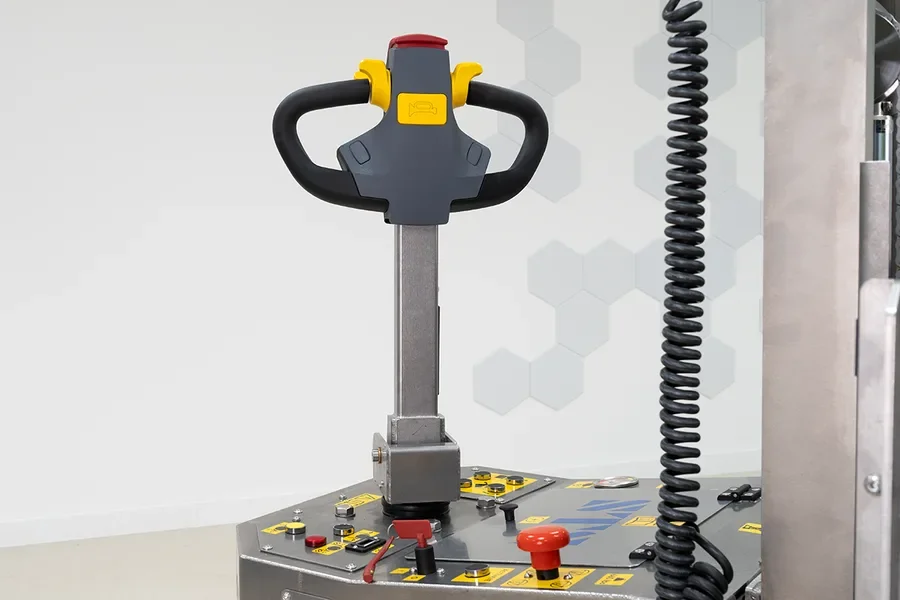

Rear tiller and control panel

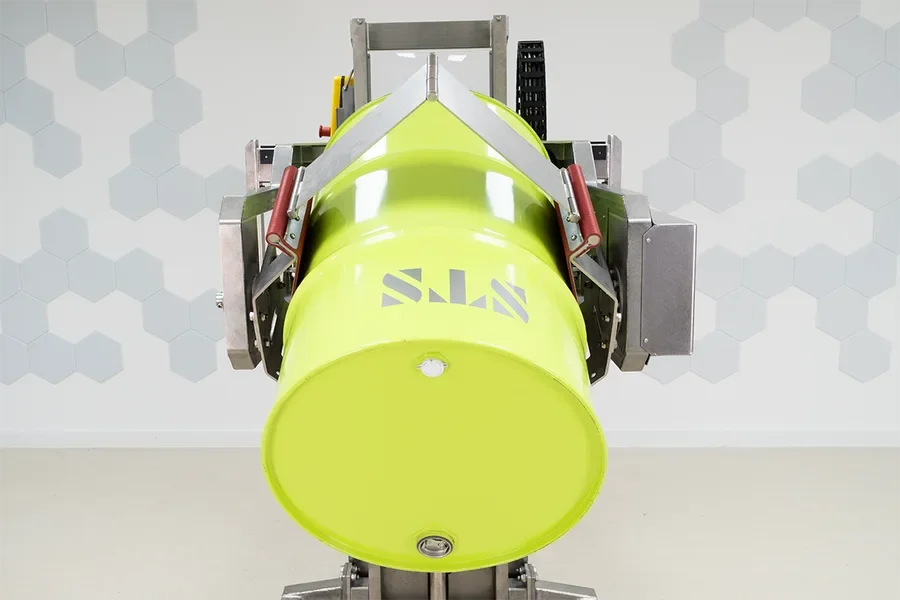

Powered drum clamp and forward rotation

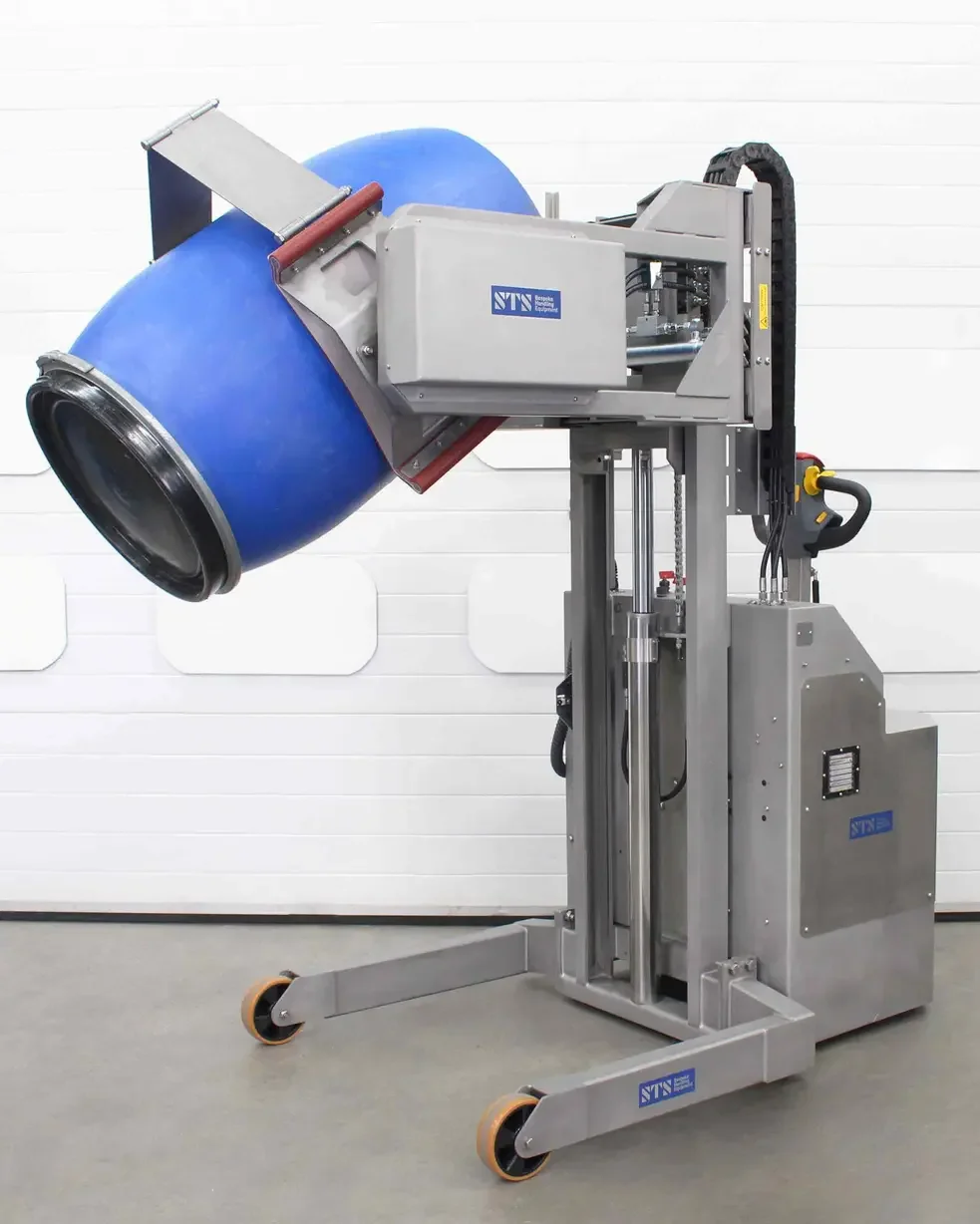

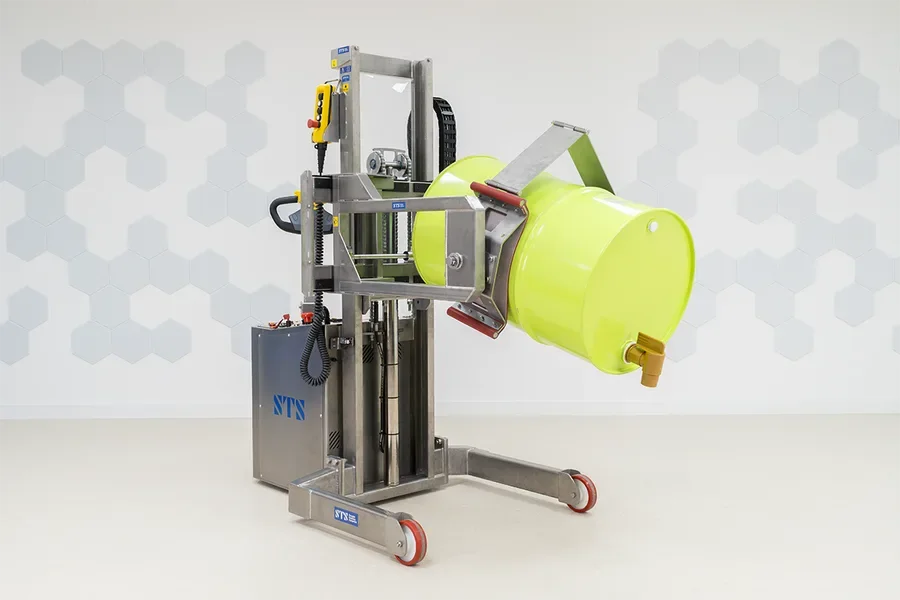

This unit has a hydraulic-powered clamping head with powered drum rotation. These powered features save time for operators and allow the unit to be fully operated from the rear panel. Operators simply approach a drum, clamp the arms around it by pressing the 'clamp' button, press 'lift', and then press 'rotate' to empty it. The machine provides ample reach when tipping into large vessels or machines. We can modify the tipping clearances to suit your exact requirements.
The flexible pads adapt to the contours of the drums and are able to accommodate a wide range of drum diameters from 11”-24” (280mm-610mm). The power-clamp pads are configured to allow drums to be removed from the corner of a pallet if needed. When lifting drums on and off pallets we can also offer a dedicated drum lifter from our range.
Each gripping head can be adapted to suit your specific lifting application. If you have custom-made drums or unique drums we can provide tailor-made gripping pads to ensure these containers can be clamped, lifted, and tipped safely and easily.
Clamping pad designs

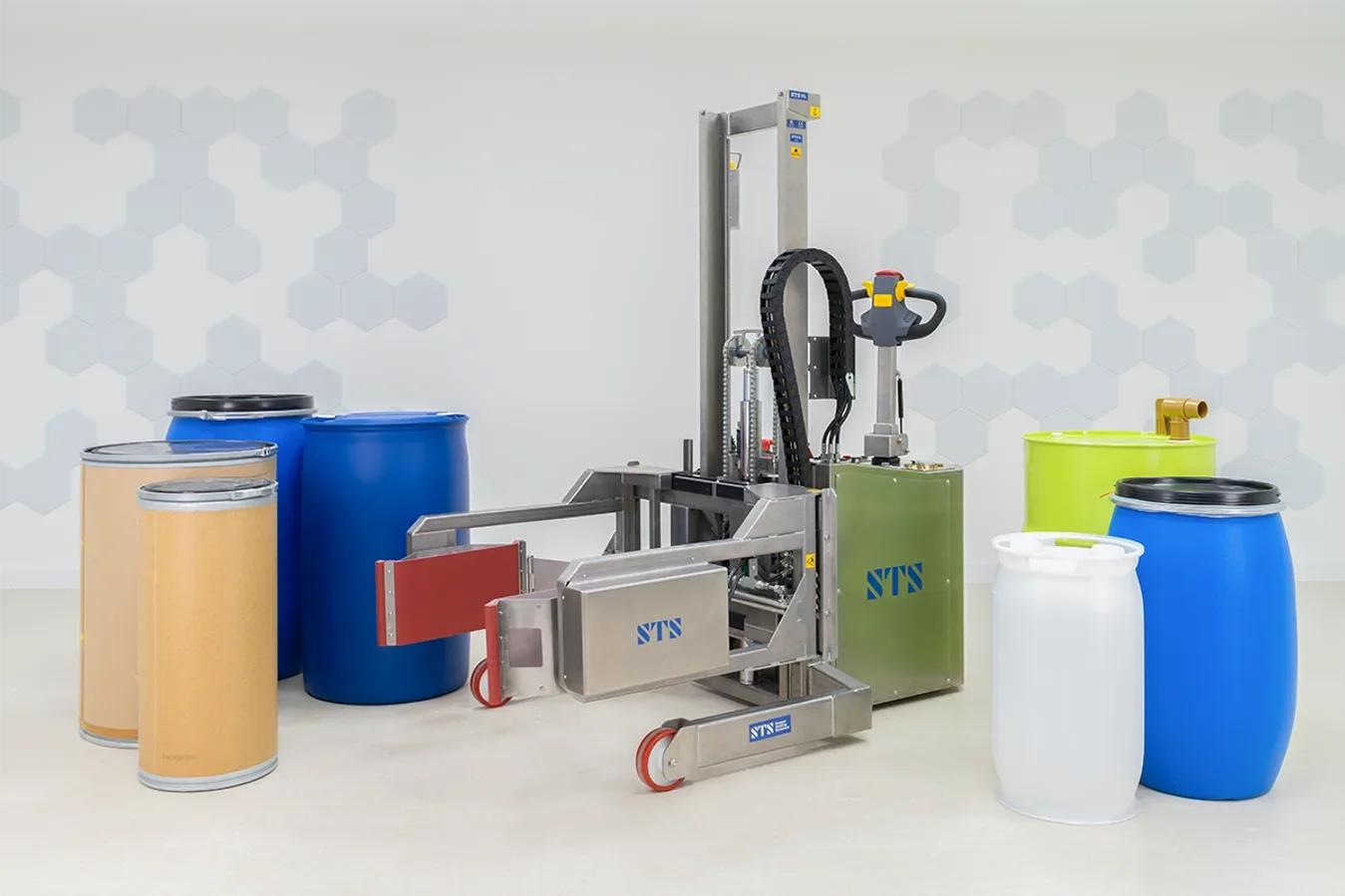

Our power-clamp unit is universal by design and is suitable for handling a wide range of drum types and sizes. The versatile clamping pads are suitable for handling drums with a diameter range of between 11” (280mm) and 24” (610mm) and of up to 39.37” (1000mm) in height.
The clamping arrangement can accommodate steel, plastic, and fiberboard drums. Very soft or flexible drums will need to be handled with care as the hydraulic clamping force can distort these. L-ring plastic drums will require a separate INS02 attachment due to their unique properties. Please get in touch with information on your drum types and sizes to check compatibility.

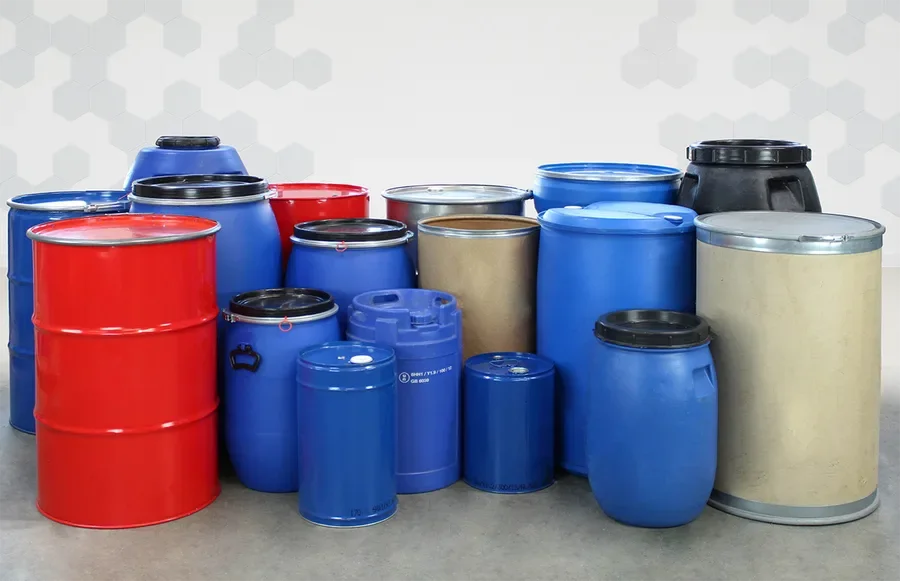

Power clamp drum suitability

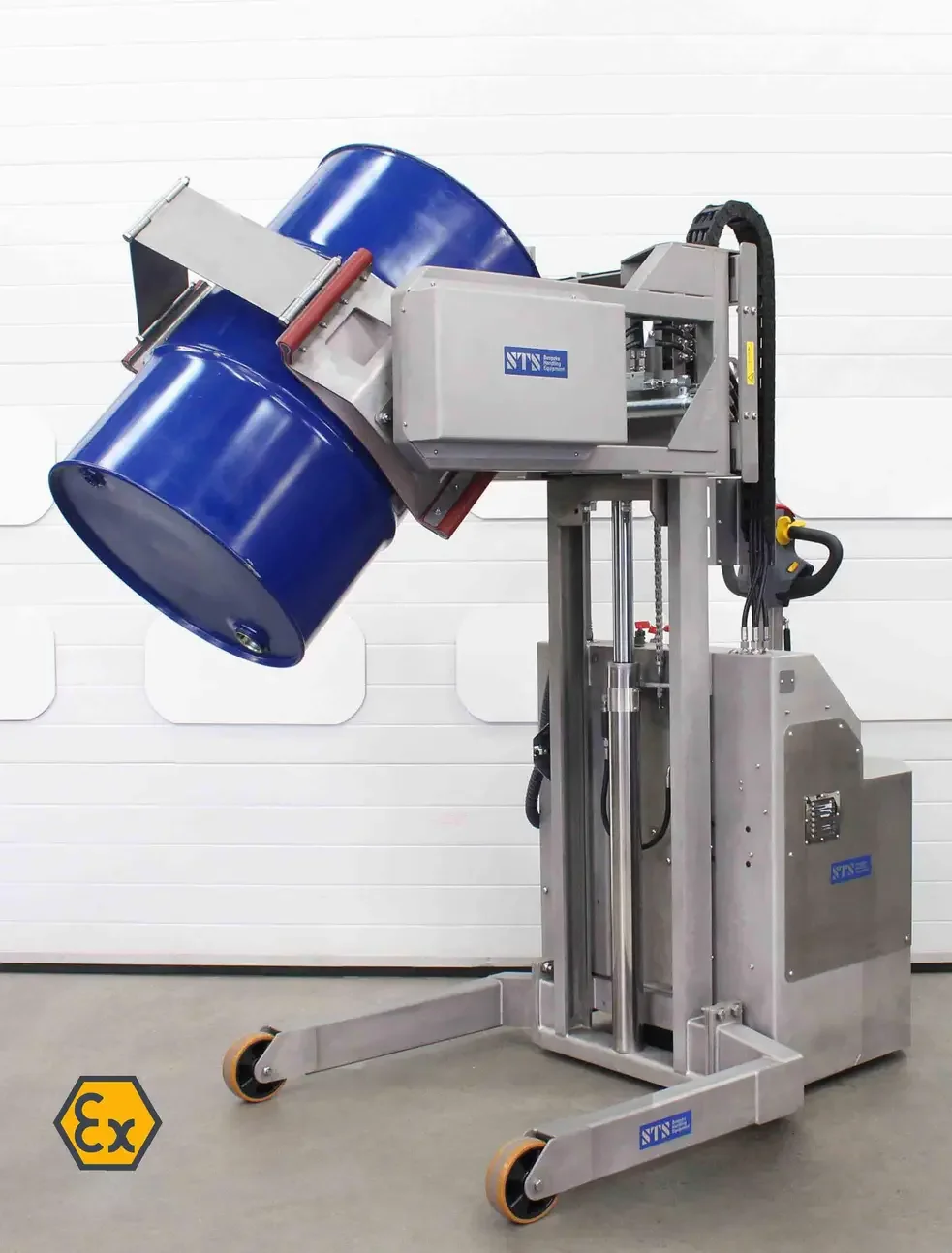

ATEX and UKEX-certified for gas and dust zones 1,2, 21 and 22 (optional)
As experts in the field, we have assisted a variety of manufacturing sectors with their hazardous drum-handling processes. Our power-drive pneumatic-hydraulic drum rotators can be supplied ATEX and UKEX compliant, suitable for use in Zone 1, 2, 21 and 22 environments.
Equipment is designed to ensure electrical continuity and that there is always a path to ground. All of our ATEX / UKEX drum handling equipment is supplied with a Declaration of Conformity which states compliance with the directives and relevant British and ISO Standards.
Technical Specifications
-
Safe working load (SWL)
661lb. (300kg)
Functions
Powered lift, clamp, rotation and drive
Power details
Two built-in 142Ah batteries power an electric-hydraulic pump and electric drive motor. Mains 230v smart battery charger built into the control box
Controls
Silicone booted buttons, emergency stop, removable key switch, digital battery condition meter
Lift stroke
1515mm
Tipping clearance
55.7” (1415mm) at 15° tip angle / 52.6” (1338mm) at 30° tip angle 55 gallon (205-liter drum)
Drum compatibility
Steel and plastic drums, 13-58 gallon (50-220 liter) (incl. MAUSER drums)
(Note: L-ring plastic drums require a separate attachment.)
Clamping system
Hydraulic constant-tension clamping head with pressure gauge for handling a wide range of drum types - ‘hands off’ drum handling solution
Rotation via gearbox
Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction
Stainless steel 304-grade construction
Metal treatment
Aqua blasted and vibro-polished stainless steel parts, smooth clean finish
Guarding
Polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 33.46 (850mm), total outside width 42.51” (1080mm)
Front wheels
Two fixed 6.29” (160mm) wheels, aluminum centered with polyurethane tires and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
-
Safe working load (SWL)
661lb (300kg)
Functions
Powered lift, clamp, rotation and drive
Power details
Pneumatic-hydraulic double-acting pump. Air powered - requires min: 105.6 gallon (400L)/min, optimum: 200.7 gallon (760L)/min at 6 bar with 1/2” (13mm) flexible air hose
Controls
Silicone booted buttons, emergency stop, removable key switch, digital battery condition meter
Lift stroke
59.6 (1515mm)
Tipping clearance
55.7” (1415mm) at 15° tip angle / 52.6” (1338mm) at 30° tip angle 55 gallon (205-litre drum)
Drum compatibility
Steel and plastic drums, 13-58 gallon (50-220 liter) (incl. MAUSER drums)
(Note: L-ring plastic drums require a separate attachment.)
Clamping system
Hydraulic constant-tension clamping head with pressure gauge for handling a wide range of drum types - ‘hands off’ drum handling solution
Rotation via gearbox
Rotation via powered gearbox assembly, fully invert drums to 180° to empty the contents
Construction
Stainless steel 304-grade construction
Metal treatment
Aqua blasted and vibro-polished stainless steel parts, smooth clean finish
Guarding
Anti-static polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 33.46” (850mm), total outside width 42.51 (1080mm)
Front wheels
Two fixed 6.29” (160mm) wheels, aluminum centered with electrically conductive polyurethane tires and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
Optional Features
EX - ATEX Option
We can offer an ATEX / UKEX version of this drum rotator model, suitable for use in zone 1, 2, 21 and 22 environments.

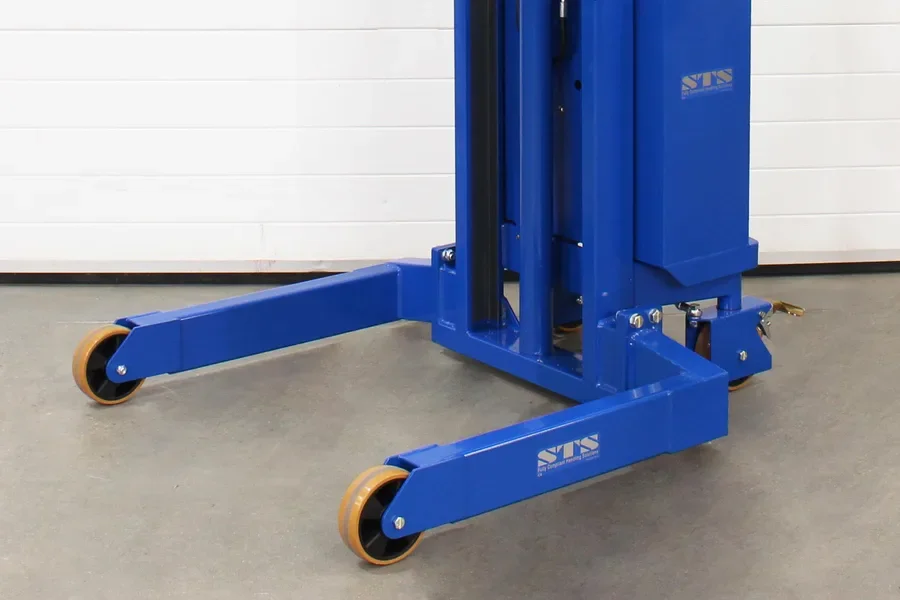

Variable leg dimensions
We can offer custom leg configurations to suit a variety of applications and usage requirements.
Load-cell weighing system
With our wireless load-cell system you can weigh drums while you lift and tip them. A wireless handheld display shows the drum weight in real time.
Telescopic/variable lift height
Single and dual-mast models are available, depending on the lift height required. Single masts offer around 59”(1500mm) lift whereas telescopic masts offer 106.29: (2700mm).
