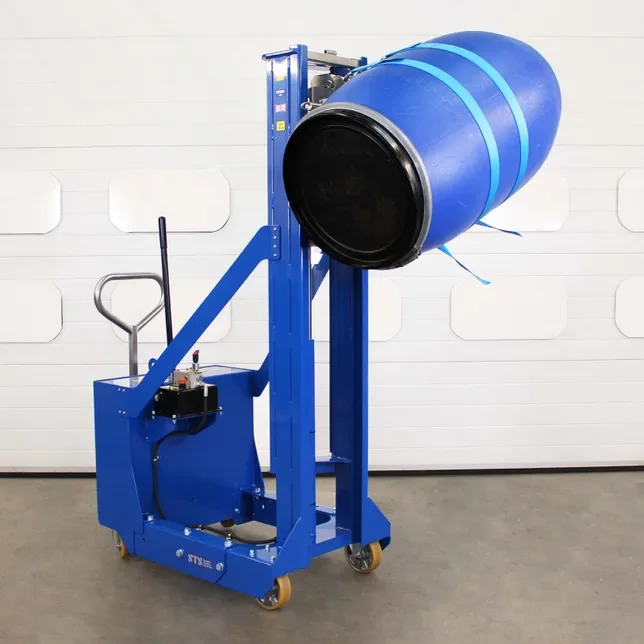

Drum Lifter / Dispenser
Product Code: DTP08-350kg-R1260-DR
This manual-hydraulic drum lifter and dispenser is suitable for decanting drums at low levels. The unit is fitted with a manual band assembly which is works for 53-58 gallon barrels and drums. (120-220 liter). The manual crank handle allows the operator to rotate drums 360 degrees making it ideal for tipping from drum to drum or using a tap to dispense material.
Features

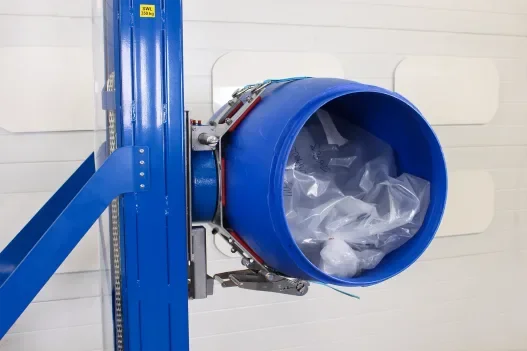

Sideways Rotation

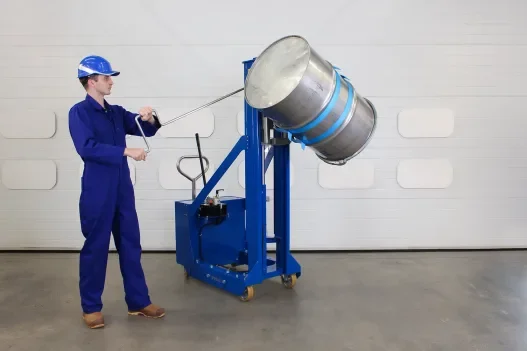

The unit is fitted with a slew-ring gearbox assembly which allows drums to be rotated sideways. The operator uses a long stainless steel crank handle to rotate the gearbox and therefore the drum. The advantage of this model over our other drum tippers is the smaller footprint and counterbalanced design.
The slew-ring gearbox assembly is very robust and hard-wearing. The force required to turn the rotation crank handle is very low due to the high ratio of the slew-ring gearbox. When the operator is not rotating the gearbox with the crank handle the drum remains mechanically locked in place.

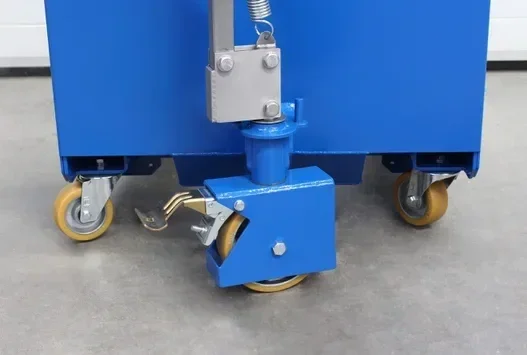

Chemical-resistant wheels
We use high-quality elasticated rubber wheels with precision bearings: these offer premium wheel performance in harsh environments. To get the most out of this unit we recommend using it on smooth surfaces. The unit is fitted with rear-wheel tiller steering which provides a tight-turning circle. This is useful if you’re using the drum handler in confined areas.
Drum rotator (DR) attachment
The drum lifter dispenser is designed for decanting 31-55 gallon (120-220 liters) steel, plastic and fiberboard drums. The unit is fitted with a contoured band which has rubber blocks fitted to remove any risk of drum slippage. The operator secures the drum in place using a dual ratchet and strap arrangement.
We can offer units for tipping at various heights with lift strokes of 19.7” (500mm), 30” (760mm) and 49.6” (1260mm) depending upon your needs. We recommend our range of Universal Drum Tippers if lifting and rotating drums into large vessels or where tipping reach is required.

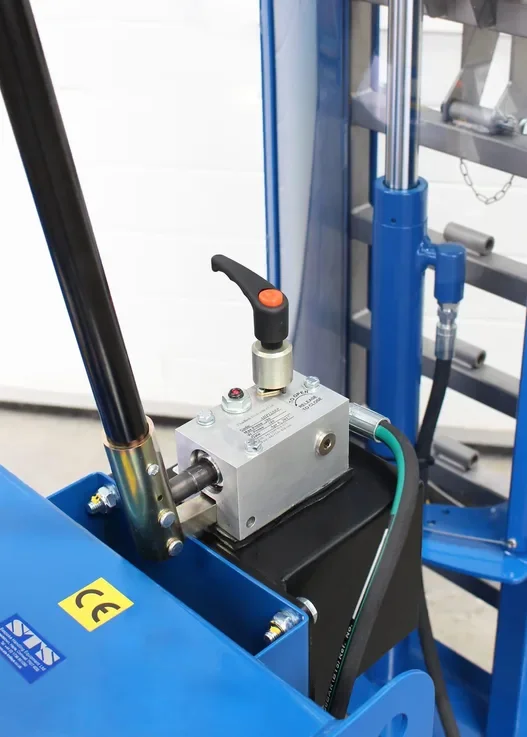

Manual Hydraulic Pump
Each hydraulic pump is manufactured by hand in the UK. Quality components are used making the pumps extremely reliable and long-lasting. On a stainless steel drum lifter, the pump assembly is shrouded in stainless steel, this protects it from water ingress and other debris found in the work environment. The pump is operated by hand by pulling an upright lever back and forth. The operation of the pump is easy and the force required to lift a drum is low; this means the drum lifter can be used by all staff with ease. Drums can be lowered back down in a controlled manner by turning a manual control valve.
The Stainless Steel Drum Lifter can be used to handle a wide variety of drum types and sizes. For details of the different drums this product is compatible with please review the below specification document. If the drums you handle within your plant are not shown please contact us and we will endeavour to provide feedback on their compatibility.
Optional Features

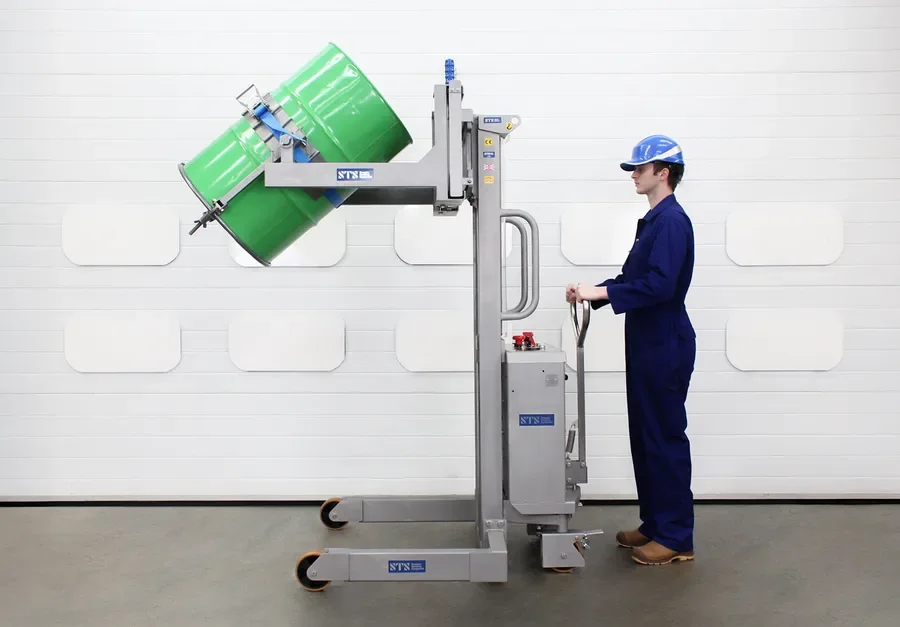

EX (ATEX)
ATEX / UKEX version of this model, suitable for use in zone 1, 2, 21 and 22 environments. We ensure electrical continuity throughout the machine with a path to 'ground' always being present. Each piece of ATEX equipment is supplied with a manufacturer’s Declaration of Conformity showing compliance with the directives and relevant British and ISO Standards.
Electric Lift
Electric lift with manual movement, making it ideal for mid to high volume drum handling across a wide range of industrial workspaces. Combining an electric-hydraulic lift system with manual drive, it removes the most physically demanding aspect of drum handling
Stainless Steel Model
We offer 304-grade stainless steel drum lifters, suitable for clean rooms as well as good manufacturing practice (GMP) areas.
Pneumatic Powered Lift
An air line connection powers a pneumatic hydraulic pump, which supplies oil to the lift system. The system is very robust and requires minimal maintenance keeping operating costs down. (DR01)
-
Safe working load (SWL)
771kg (350kg)
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
Drum compatibility
Steel, plastic and fiberboard drums, 120-220 liters (incl. MAUSER drums)
Drum securing
Drum secured used two 2” (50mm) ratchets and webbing straps
Drum rotation mechanism
Slew-ring horizontal gearbox assembly with long stainless steel crank-lever
Lift stroke
49.6” (1260mm)
Under-drum clearance
42.5” (1080mm)
Lifting system
Hydraulic 13cc hand-operated pump with lowering valve; pump lifts a hydraulic ram which raises a carriage via a zinc-coated lift chain
Guarding
Shatterproof clear polycarbonate
Metal preparation
Grit blasted mild steel, aqua blasted stainless steel parts
Surface finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Unit color
RAL 5010 (blue)
Front wheel type
Fixed 6.29” (160mm), precision bearings
Front wheel material
Aluminum centered, polyurethane tires
Rear wheel type
Outrigger 3.9” (100mm) castors and rear 6.29” (160mm) steerable wheel both with precision bearings
Rear wheel material
Aluminum centered, polyurethane tires
Compliance
CE / UKCA
-
Safe working load (SWL)
771kg (350kg)
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
Drum compatibility
Steel, plastic and fiberboard drums, 120-220 liters (incl. MAUSER drums)
Drum securing
Drum secured used two 2” (50mm) ratchets and webbing straps
Drum rotation mechanism
Slew-ring horizontal gearbox assembly with long stainless steel crank-lever
Lift stroke
49.6” (1260mm)
Under-drum clearance
42.5” (1080mm)
Lifting system
Hydraulic 13cc hand-operated pump with lowering valve; pump lifts a hydraulic ram which raises a carriage via a zinc-coated lift chain
Guarding
Shatterproof clear polycarbonate
Metal preparation
Grit blasted mild steel, aqua blasted stainless steel parts
Surface finish
Primer and polyester powder coated mild steel, stainless steel is smooth and clean
Unit color
RAL 5010 (blue)
Front wheel type
Fixed 6.29” (160mm), precision bearings
Front wheel material
Aluminum centered, polyurethane electrically conductive tires
Rear wheel type
Outrigger 3.9” (100mm) castors and rear 6.29” (160mm) steerable wheel both with precision bearings
Rear wheel material
Aluminum centered, polyurethane electrically conductive tires
Compliance
CE / UKCA / ATEX / UKEX (zones 1, 2, 21, 22)
All products are covered by a 2-year warranty on parts and 10 years technical support
