Forklift Drum Tipper Attachment (ATEX)
DRU04-SS-EX

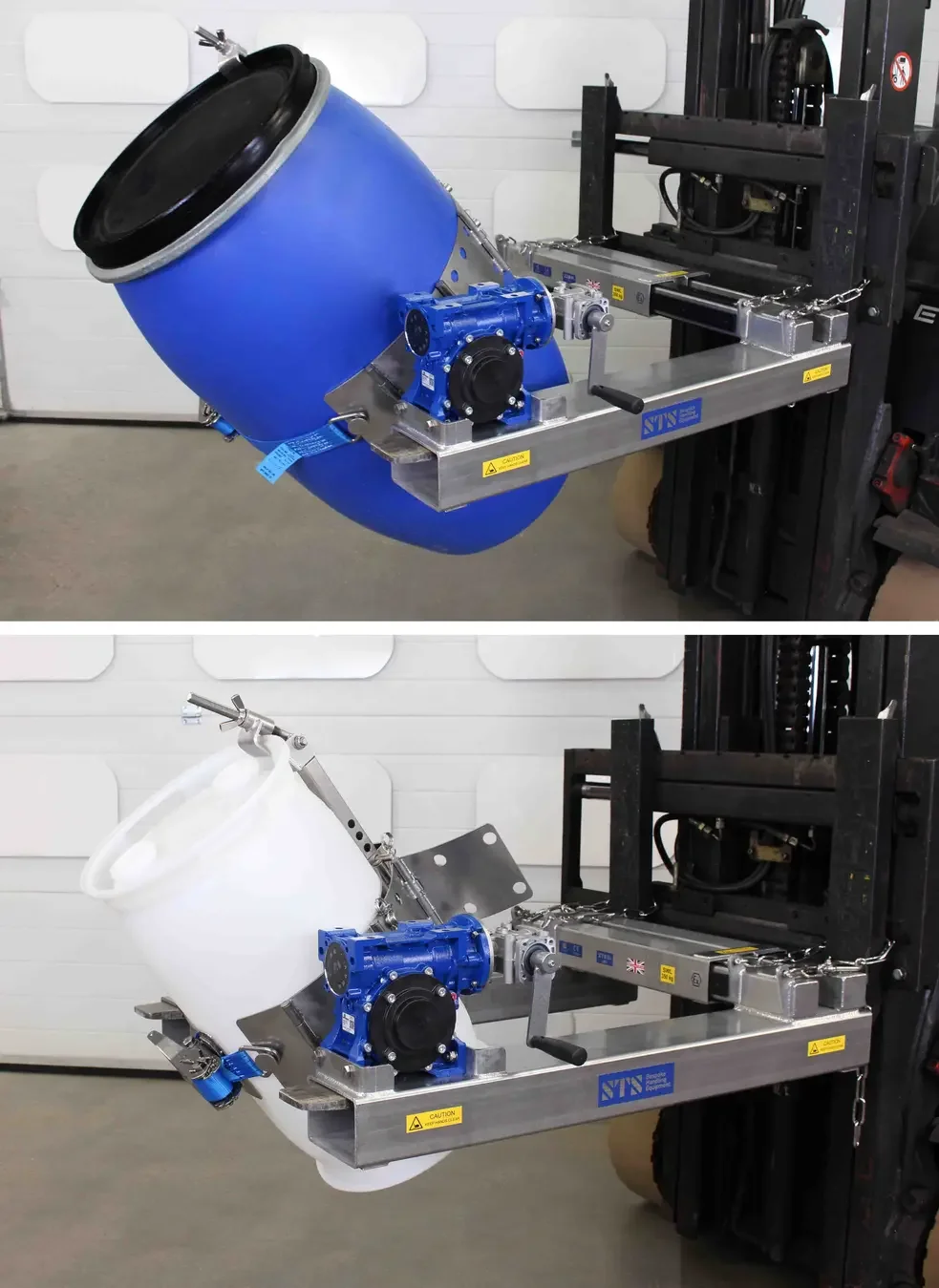

Universal Drum Band
The unit is fitted with a stainless-steel fully-adjustable drum band that can handle steel, plastic, or fiber drums from 13-58 gallons (50-220 liters). Simply adjust the variable band to the size of the drum and secure the drum with the ratchet and polyester strap. We can also fit this unit with a fixed over-center clamp band for companies only handling 55 gallon (200-220 liter) drums. All of our drum rotator models include a high-quality self-locking rotational gearbox. This makes sure that when you’re rotating drums they always remain under control and never self-rotate.

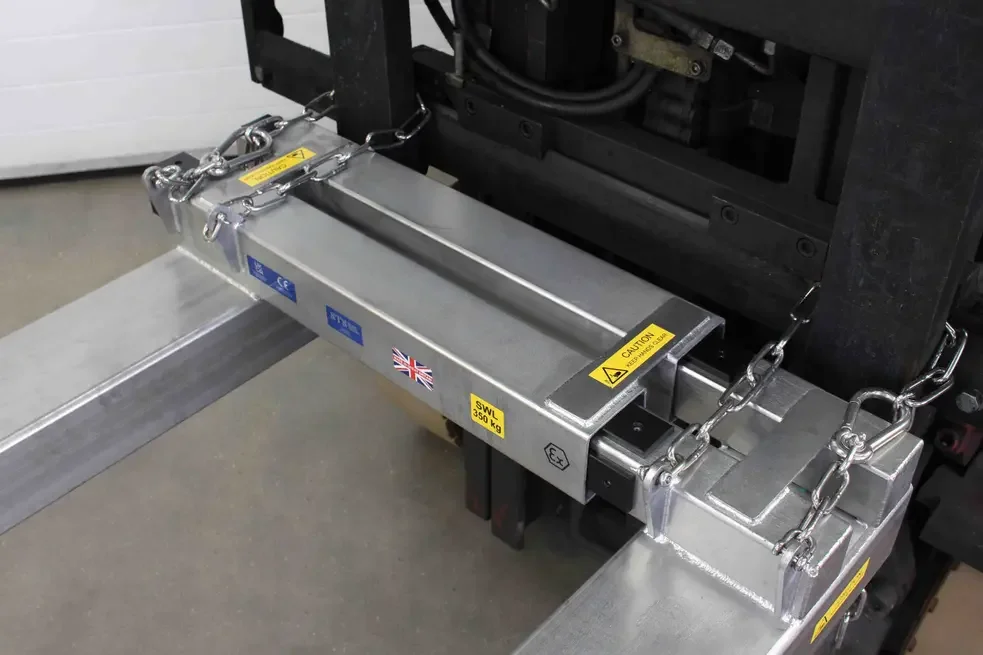

Sliding band mechanism
Unlike other units on the market that are fixed (and are therefore only suitable for 55 gallon (200 liter) drums), our unit can be adjusted to accommodate drums from 13-58 gallons (220 liters) with ease. The drum tipper frame itself utilizes a sliding mechanism - as the forks are pushed closer together along the back frame, this allows the universal band to be adjusted to suit smaller diameter drums. Given suppliers regularly change drum sizes it is important to source a versatile drum tipper rather than one limited to just one drum size.

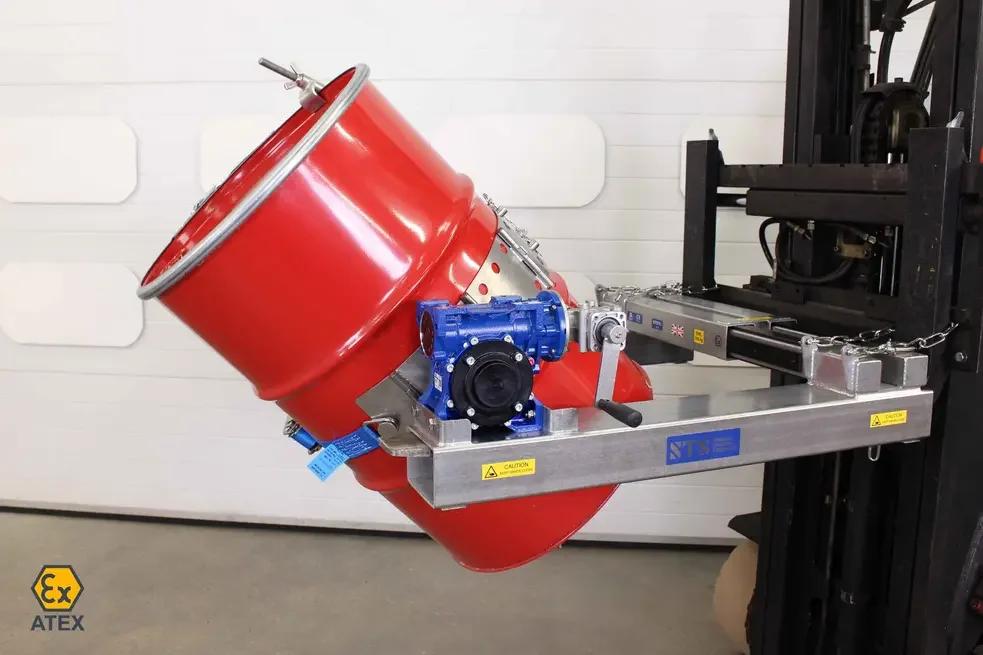

ATEX / UKEX-certified for gas and dust zones 1, 2, 21, and 22
We can provide a fully-certified ATEX / UKEX Forklift Drum Tipper Attachment for use in hazardous zoned areas. Our DRU04-SS-Ex is constructed from 304-grade stainless steel, this eliminates any thermic-strike risk. This model is suitable for gas and dust areas: Zone 1, 2, 21, and 22. All our 'Ex' rated drum handling equipment is supplied with a manufacturer’s Declaration of Conformity which demonstrates compliance with the directives and relevant British and ISO Standards.
Drum Suitability
Our Overhead Drum Rotator is suitable for a wide range of drum types, sizes and materials. For a detailed list of compatible drum types, see the drum suitability document below.
-
Safe working load (SWL)
771 lb (350kg)
Drum compatibility
Steel and plastic drums, 13-58 gallon (50-220 liter) (incl. MAUSER drums)
Band assembly
Segmented adjustable/universal band with 1.96” (50mm) stainless steel ratchet and polyester strap
Additional drum securing
Rim clamp included which grips the top edge of the drum preventing slippage
Rotation gearbox
Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction
Stainless steel 304-grade construction
Metal preparation
Brushed finish with TIG brush chemically etched welds
Surface finish
Smooth clean stainless steel finish
Compatible with forklift truck
Yes
Compliance
EC Machinery Directive 2006/42/EC
ATEX Directive 2014/34/EU
Zones 1, 2, 21 and 22 CE Ex II 2 G D
