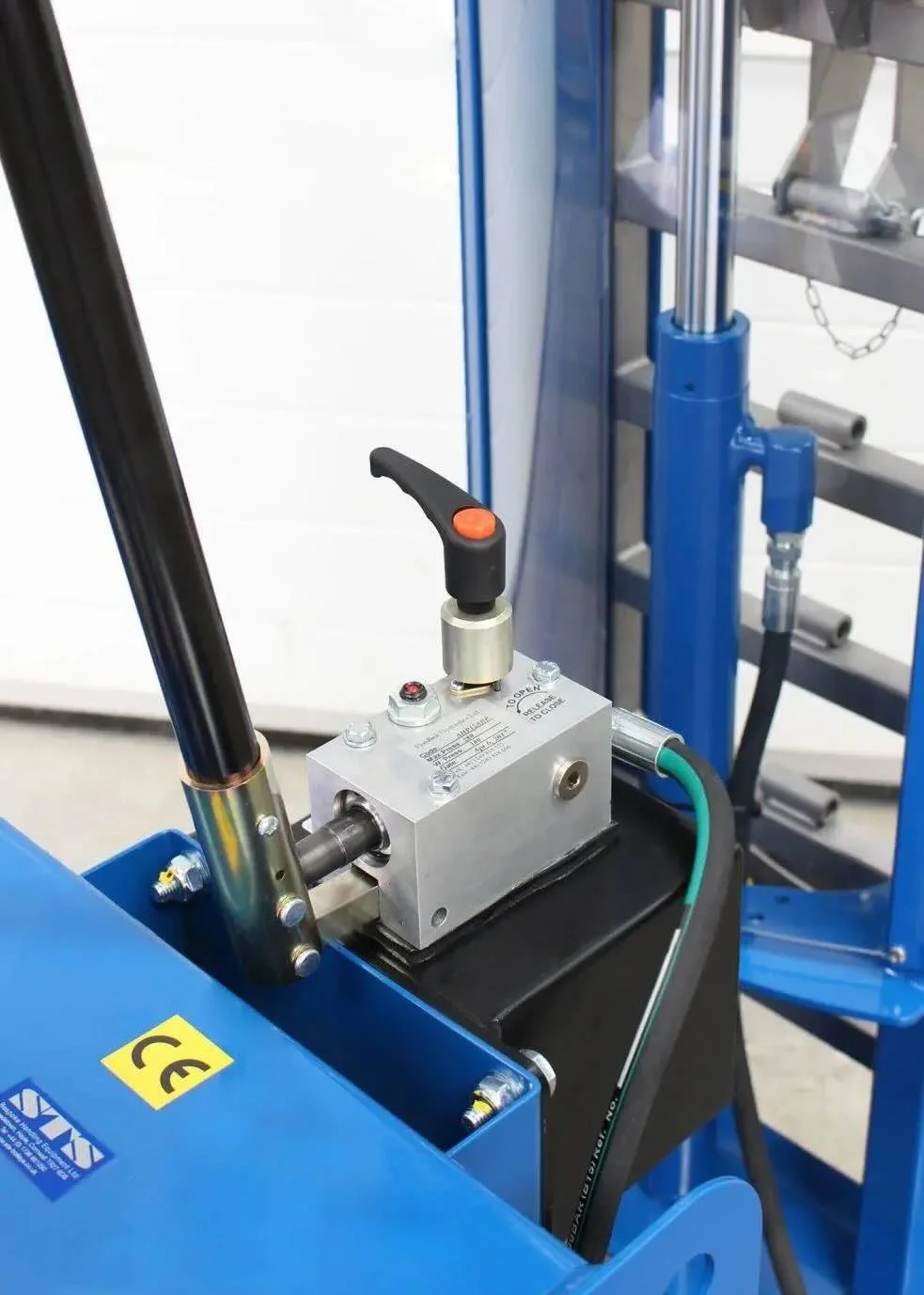

This machine makes use of a 13cc hydraulic hand pump to raise the load. Operators move the handle back and forth to pump hydraulic fluid to the lift ram from the tank. To lower the cylinder down a manual release handle is twisted counter-clockwise; this returns the hydraulic fluid back to the tank from the lift ram. We use only the highest-quality hydraulic components to ensure long-term reliability. Each hydraulic system is assembled by hand and hydraulic hoses are cleaned before use to ensure system cleanliness.

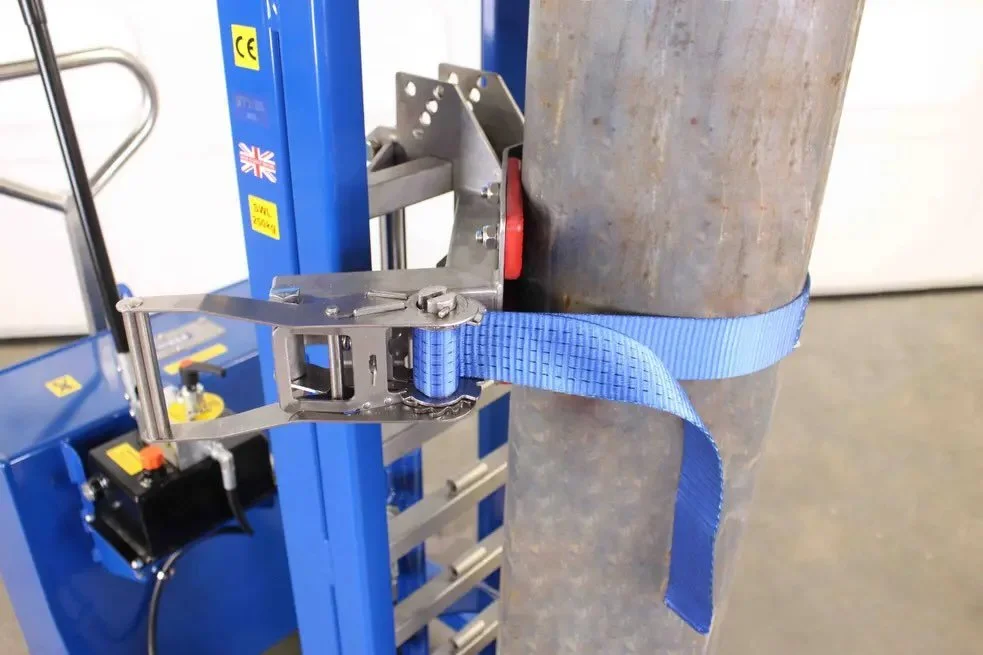

The unit has a rubber support pad to suit gas bottles with diameters between 7.08” (180mm) to 17.71” (450mm). The operator secures the cylinder against the pad using a ratchet and strap mechanism before lifting and maneuvering it into place. The rubber pads provide additional grip between the cylinder and support pad ensuring the load is held securely throughout the handling operation. To detach the cylinder the ratchet mechanism is released, this is done by pulling the ratchet lever and rotating the handle forwards.

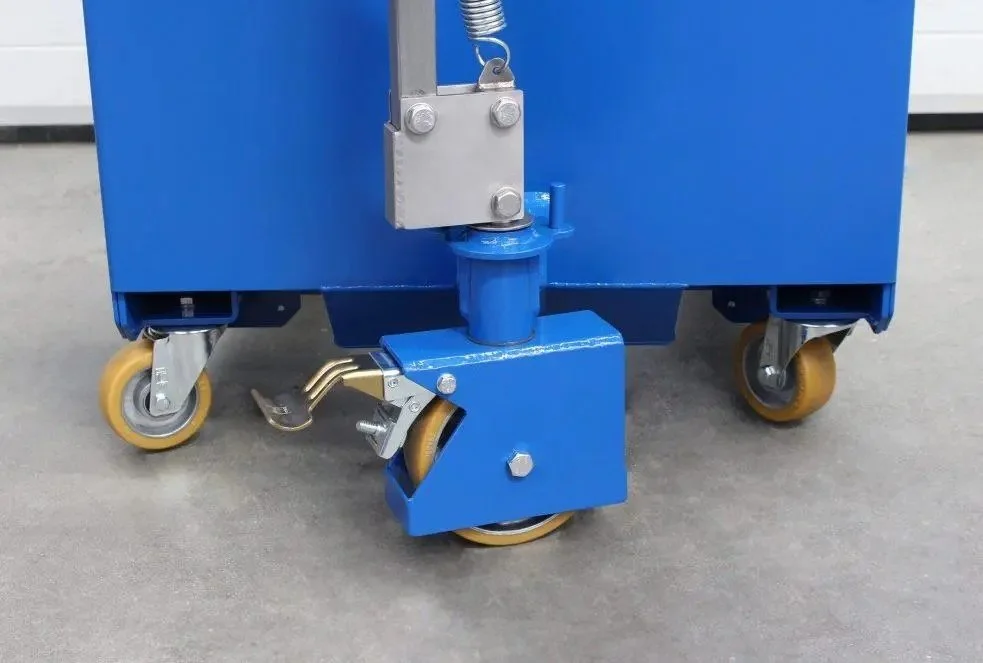

This machine is fitted with three wheels in total: two 6.29” (160mm) front wheels and a single 6.29”(160mm) rear steering wheel. All wheels fitted are aluminum centered and have a hard polyurethane tire which is very robust. The wheels are resistant to oil making them ideal for use in harsh industrial environments. Due to the precision bearings used, these wheels make for a low rolling resistance when used on a flat and level floor.
