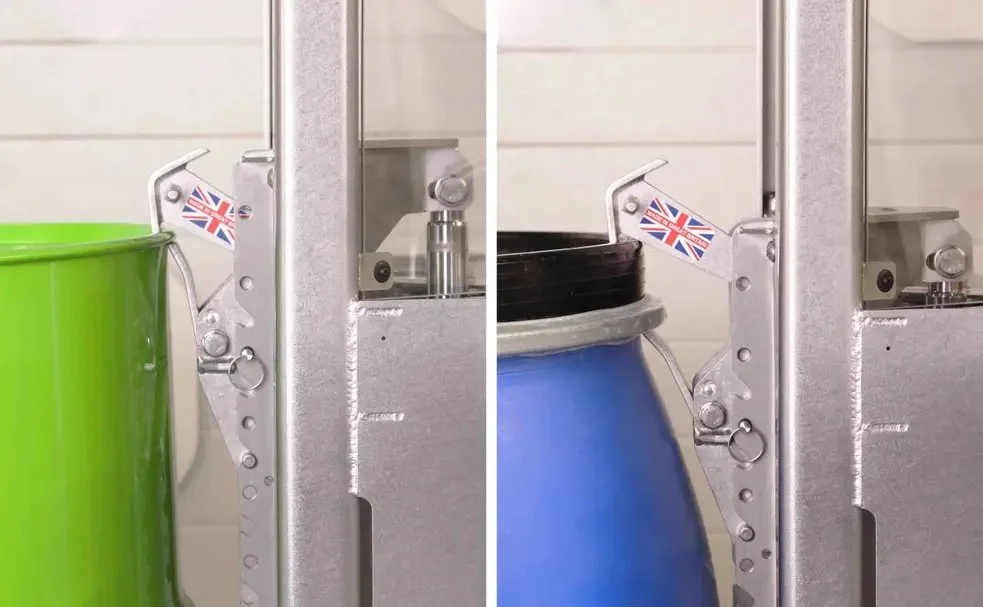

Industrial drums come in many different shapes and sizes depending on the industry. It is important that drum lifters can handle all the most common drums found in the workplace. Laser-cut from stainless steel, our tried and tested universal drum catch allows you to connect the lifter to a huge range of drum types.

13-58 gallon (50-220 liters)

All our side-shift drum movers are equipped with high-quality hydraulic hand pumps engineered for reliability and performance. Each hydraulic system is carefully assembled to ensure it is dependable and free from defects. The hand pump simplifies operations: users pump the handle up and down to lift the drum and use a hand-operated valve for smooth and controlled lowering. The lift system is intuitive and easy to understand. 17cc hydraulic pump.

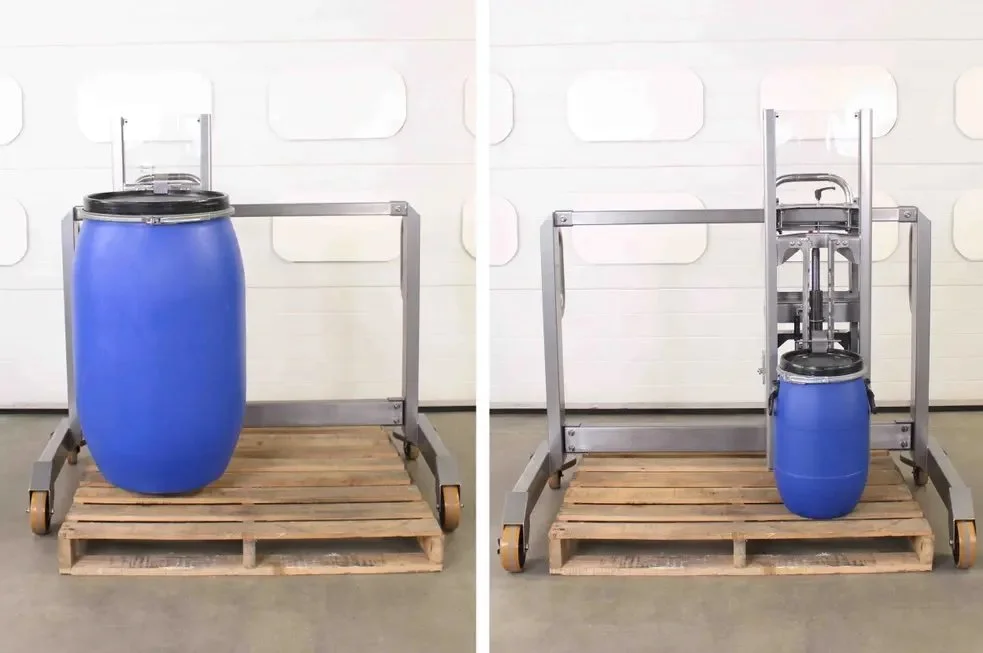

Drums can vary in height depending on their size. This means it is important to choose a drum lifter that can accept not only the drums you use today but also the drums you may need to handle in the future. With our unique quick-change rack, you can adjust the position of the drum catch to accommodate drums of different heights. In a matter of seconds move the catch down for shorter drums and up for taller drums.

The ladder rack at the front of the drum unloader features a number of different mounting positions. The drum catch can be positioned at different heights for different heights of drums. To reposition the drum catch, a pin is removed, the catch is repositioned and the securing pin re-fitted. The modular rack design allows us to create custom attachments for any unusual drums or bespoke applications.

15”-39.37” (380-1000mm) Drum height

As with our other drum lifters, you can use this model with a wide variety of drum types and sizes, which is useful if you handle different types of drums daily. For details about the drums with which this product is compatible, please see the drum suitability document below. If the drums you use aren’t in the specification, contact us and we can offer advice and guidance.

Our side-shift function is unique: fourteen precision bearings allow you to smoothly slide the central lifter left and right making accessing the whole pallet simple and easy. Once the central lifter is locked in place, you can move the drum handler over the pallet to pick up the drum. When lowering a drum to the floor, the side-shift function provides precise control and helps to reduce placement gaps between drums.

The side-shift drum mover is designed for effortless mobility and precision. The standard model features polyurethane tires mounted on durable aluminum hubs. For environments requiring enhanced safety, the ATEX model is equipped with tires made from an anti-static compound. Each wheel has two precision bearings within the hub, ensuring low rolling resistance. This makes the unit exceptionally easy to maneuver, even when handling fully loaded drums weighing up to 771lbs. To maximize the performance and longevity of your side-shift drum mover, we recommend operating it on smooth, flat surfaces.

6.29” (160mm)/ 3.9” (100mm) Polyurethane wheels

ATEX certified for gas and dust zones

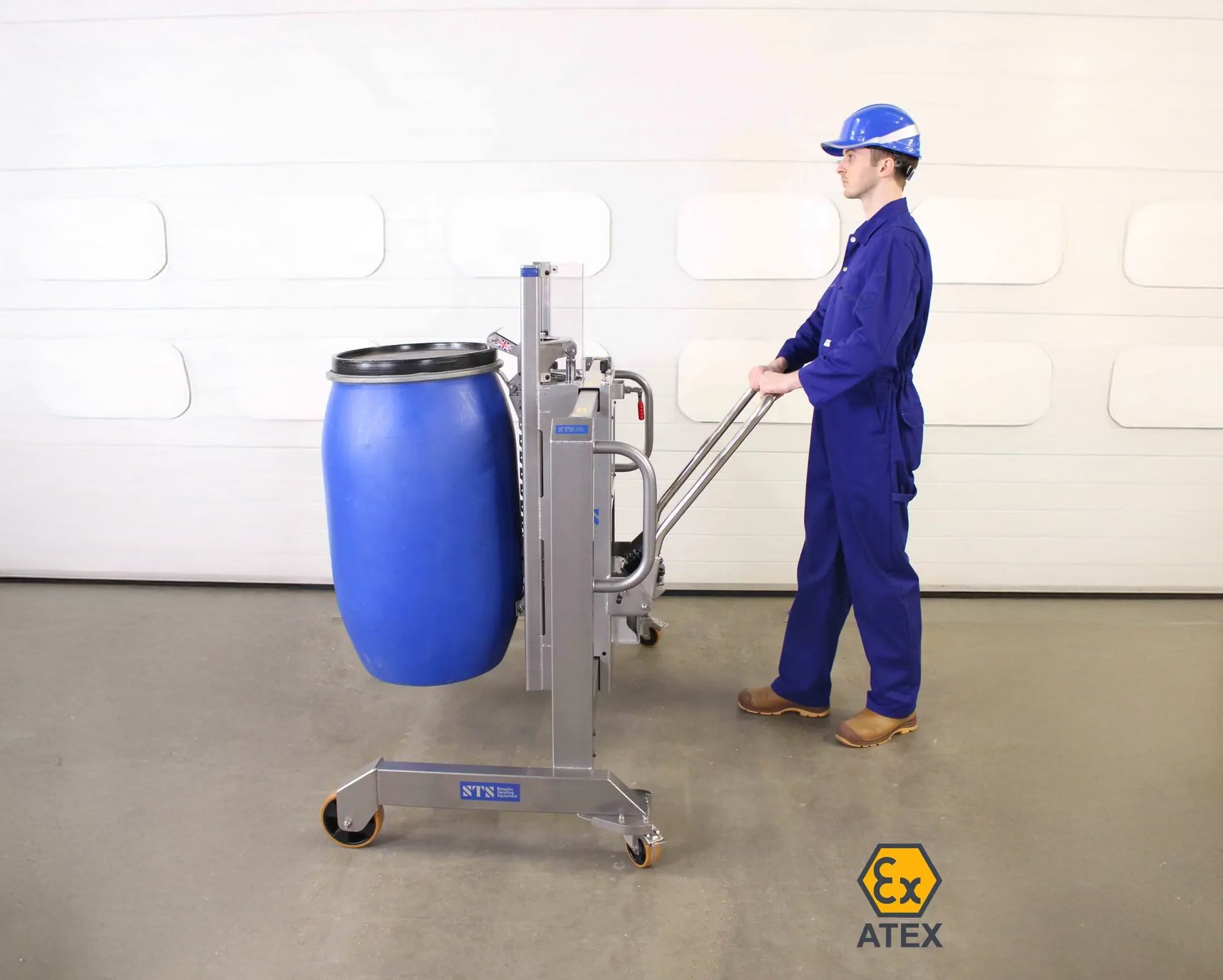

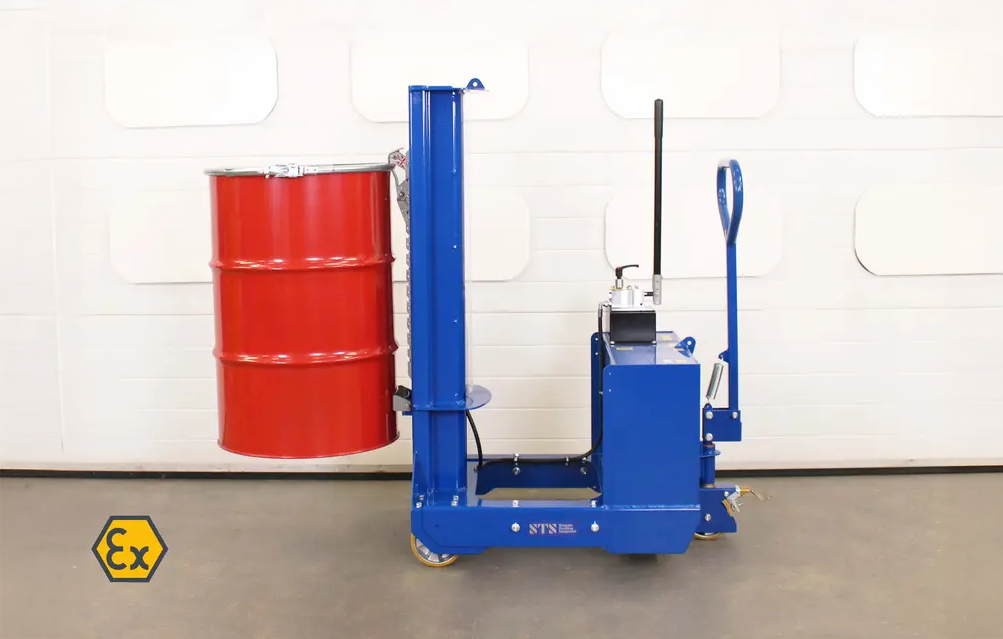

We provide a fully certified 'Ex' rated drum lifter for use in flammable and explosive areas. These models utilize anti-static and conductive components to ensure safety and conformity. We also ensure full electrical continuity throughout the machine to dissipate static charges should they occur. Our ATEX Counterbalanced Drum Lifter is suitable for use in classified zones 1, 2, 21, and 22.

'Ex' Rated model

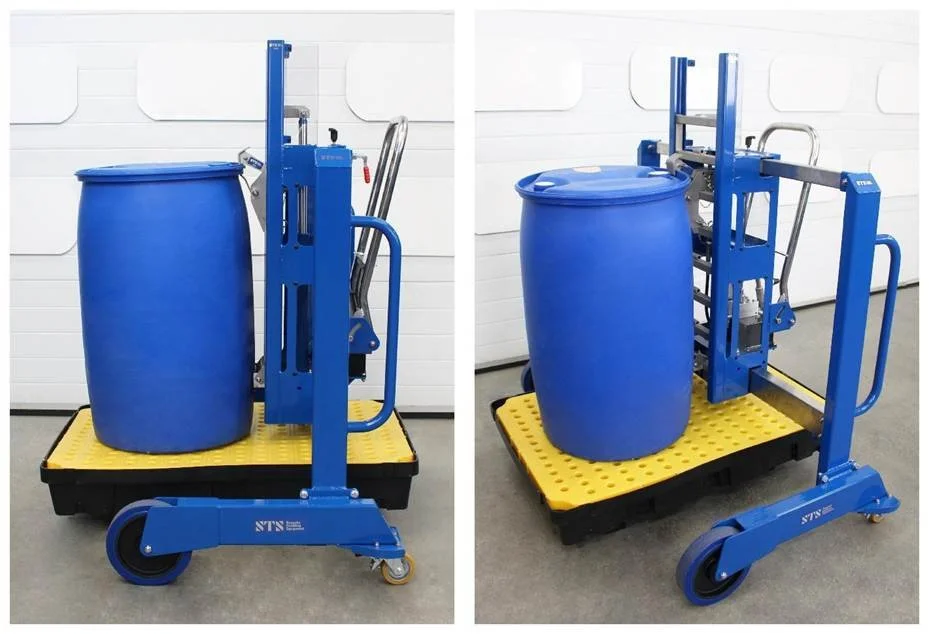

We can supply this model with a taller lifter body and hydraulic ram assembly. This allows operators to load and unload drums at greater heights making the unit more versatile. A typical use case would be placing drums onto high containment/spill bunds or elevated platforms and conveyors.

We offer three different straddle options to accommodate various pallet sizes: 33.4” (850mm), 41.3”( 1050mm), and 49.2” (1250). These alternative widths ensure that our drum lifter can efficiently approach different pallet configurations, providing flexibility to meet the specific needs of your operations. Whether you're working with smaller or larger pallets we can configure this model to suit.

Our integrated weighing system has an accuracy of +/- 3.5oz (0.1kg). This system streamlines operations by weighing drums whilst lifting them, eliminating the need for separate floor scales. This system improves efficiency and helps operators identify over- or under-filled drums early, ensuring smoother workflows and enhanced quality control.

We can offer this drum lifter with an electric-hydraulic lift system, designed to make the lifting of heavy drums effortless. The electric system further reduces the physical effort required to move drums. This feature is especially valuable for high-frequency drum handling operations, where enhancing productivity is crucial. The push-button functionality further improves ergonomics when choosing this model.

Battery-powered system

We design and manufacture a range of bespoke attachments and tools to tackle challenging drum-lifting scenarios. Whether it's large screw-top drums typically used for transporting olives and pickles, or bespoke plastic drums designed for the pharmaceutical industry, we are available to offer assistance.
