DRUM MOVER

Product Code: DTP04-R500-1250 (Ex)
Side-Shift Drum Mover

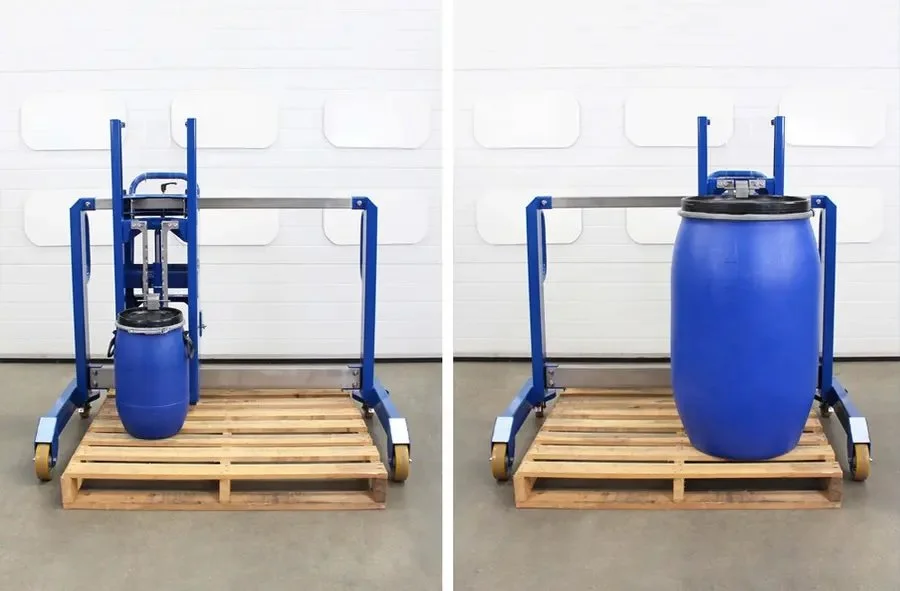

This drum mover is designed for moving drums and barrels from any position on a pallet and features a unique ‘side-shift’ functionality. This unit is capable of lifting plastic, steel and fiberboard drums from 13 to 58 gallons. The sliding side-shift arrangement uses 14 rubber-sealed stainless bearings to effortlessly glide the central lifter body left and right. Drums can be moved from one side of the pallet to another with a minimal amount of effort.

The drum mover straddles a pallet from one side and the central lifter body goes over the top of the pallet. Pallets can be kept in confined areas up against the wall while drums can still be unloaded with ease. When moving a drum onto another pallet, scale, or the floor, the drum can be moved to either side using the side-shift arrangement.

Each hydraulic pump assembly is manufactured by qualified technicians to ensure they are clean and reliable. Hydraulic circuits are flushed through to ensure no debris or dirt passes through the pump unit. During the manufacturing of the drum movers engineers test and inspect all components to ensure they work smoothly and effectively throughout the life of the unit.

OPTIONAL FEATURE

Load-cell weighing system

With our load-cell system you can weigh drums while you handle them. A display provides real-time weight information for quantity-sensitive processes.

Technical specification

• Safe working load (SWL) | 770lbs

• Pallet straddle | 49”

• Pallet approach | Over-pallet straddle, lateral sliding lifter body

• Drum compatibility | Steel, plastic and fiberboard drums, 10-48 gallons (incl. MAUSER drums)

• Drum gripping catch | Adjustable catch for different drum lips, catch is also height adjustable

• Lift stroke | 500mm

• Under-drum clearance | 19”

• Clearance under lifter body | 6” from bottom of lifter body to the floor

• Lifting system | Hydraulic 17cc hand-operated pump with lowering valve

• Guarding | Shatterproof clear polycarbonate

• Metal preparation | Grit blasted mild steel, aqua blasted stainless steel parts

• Surface finish | Primer and polyester powder coated mild steel, stainless steel is smooth and clean

• Unit color | RAL 5010 (blue)

• Front wheel type | Fixed 6”, precision bearings

• Front wheel material | Nylon centered, elasticated rubber tires

• Rear wheel type | Braked castors 4”, precision bearings

• Rear wheel material | Aluminum centered, polyurethane tires
