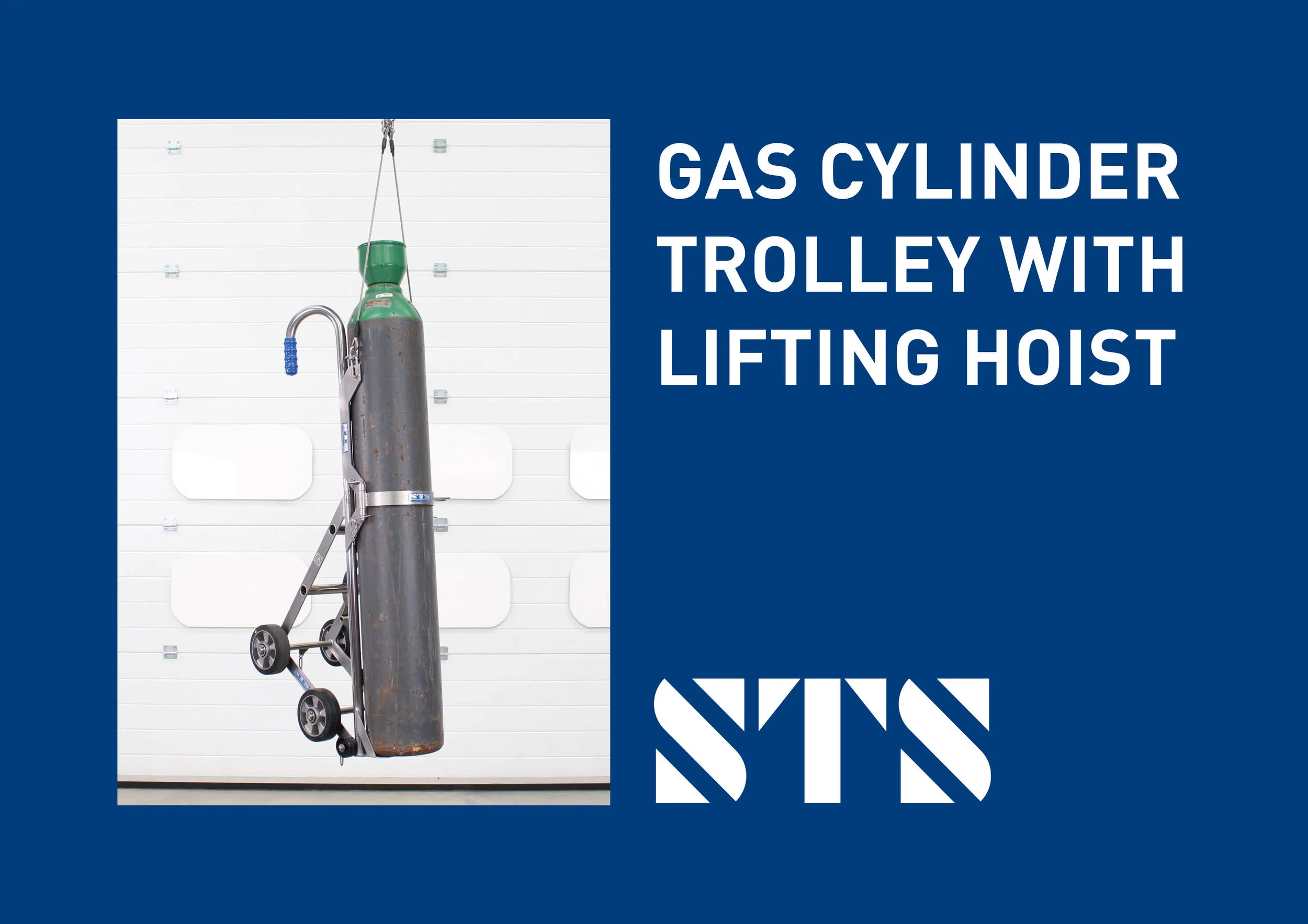

Gas Cylinder hand truck with Lifting Hoist

Product Code: CTS02

This hand truck with lifting hoist has been developed for companies who have a need to lift cylinders using a crane or hoist. The cylinder is locked into the hand truck with a secure two-part locking mechanism system. The truck has a rated lifting capacity of 330 pounds.

The hand truck was developed for a healthcare contractor supplying mobile operating theatres. The company were keen to solve a manual handling issue where large high pressure oxygen cylinders needed to be loaded into gas banks. Often this was a job undertaken by a single operator and the cylinder had to be lifted from the floor to the gas bank.

The Gas Cylinder Hand Truck with Lifting Hoist has proven very popular with hospitals and laboratories who are interested in handling gas cylinders safely and in compliance with health and safety guidelines.

Technical Specifications

• rated capacity 330 pounds;

• simple one person operation;

• effortlessly move cylinders around the workplace;

• negotiates single steps and lips with minimal effort;

• fully-certified overhead lifting hoist;

• cylinder securing gate with two-part locking mechanism;

• operator input load 33 pounds; • maximum cylinder height 63 inches;

• maximum cylinder diameter 9 ¾ inches;

• minimum cylinder diameter 7 ½ inches;

• truck width of 15 inches;

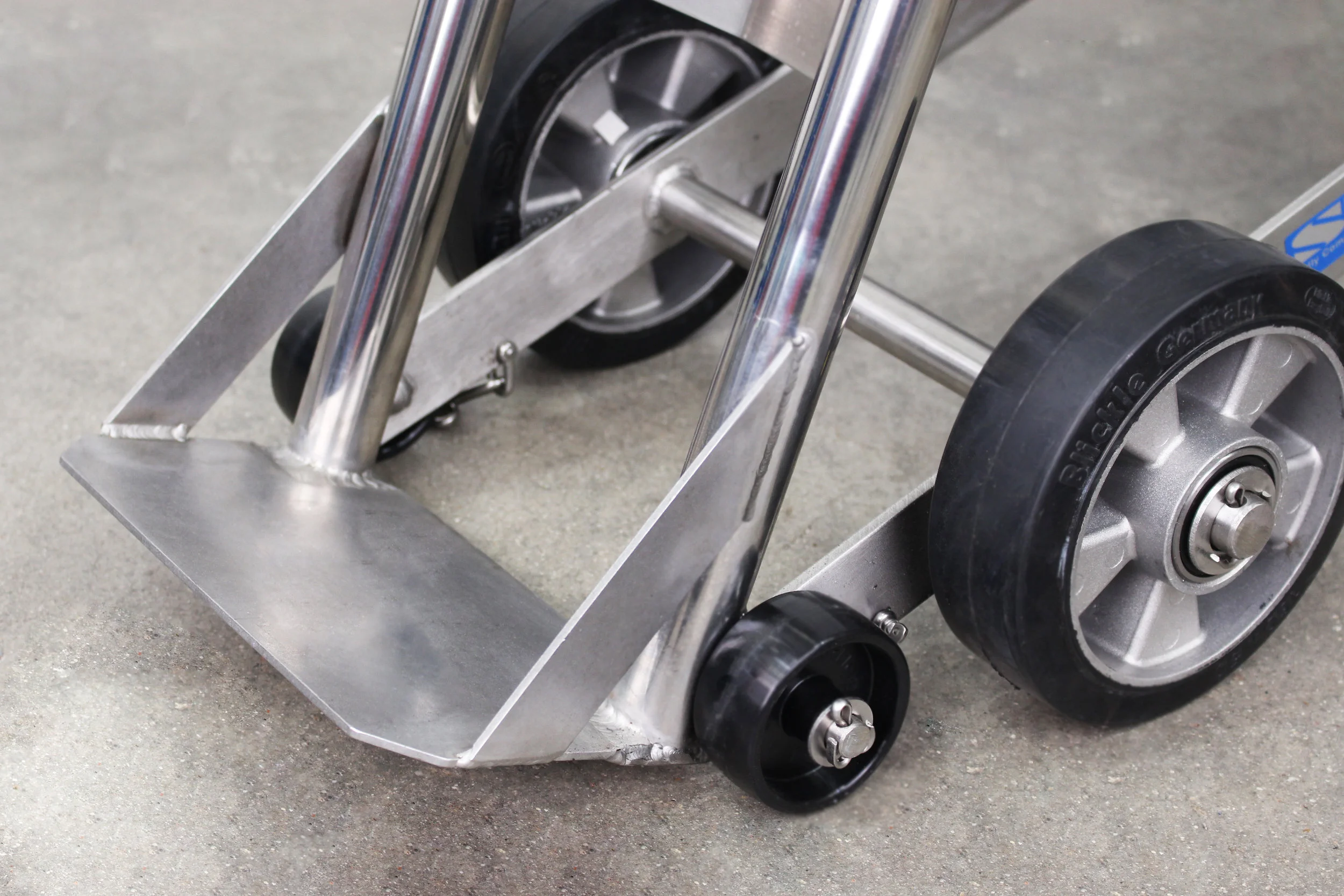

• nylon centred wheels with rubber tyres and precision bearings;

• fully compliant with manual handling guidelines;

• stainless steel 304-grade construction;

• ATEX / spark-proof option available (CTS02-Ex).
