Product Code:
DME01-230V-10RPM-25LPJC8
Available in 120V
Plastic Jerrycan Mixer

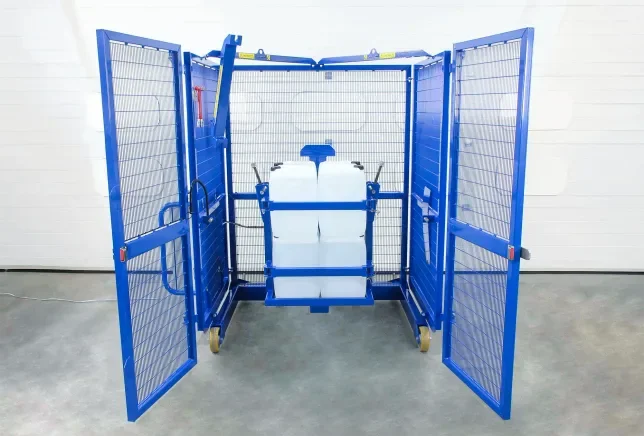

Designed to allow batch mixing of 6.6 Gallon (25 liter) containers commonly found in industrial environments. Simply load eight plastic jerrycans into the mixer head, secure in place and then mix to homogenize the contents. This model is 120V or 230V powered and complies with the Machinery Directive.

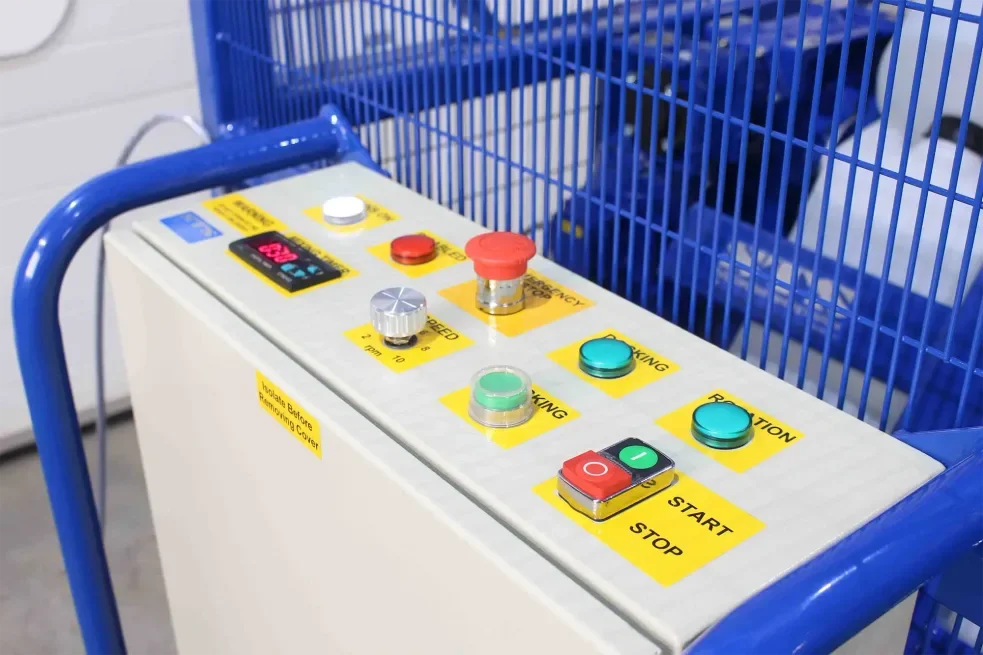

Electric control system
This jerrycan mixer features an electric control panel on the side of the unit. The following controls are available via the panel: start/stop, mix timer, variable RPM, docking function and LED-light indicators. Users can configure the jerrycan mixer to suit their requirements, once they press start the mixer will rotate for the set duration. A home function button returns the stack of jerrycans to the vertical orientation ready for unloading.

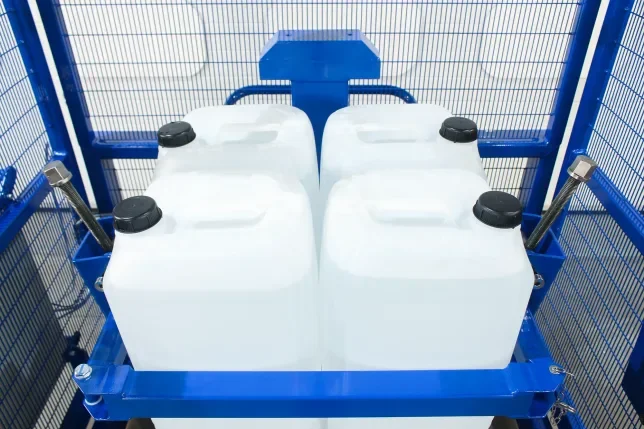

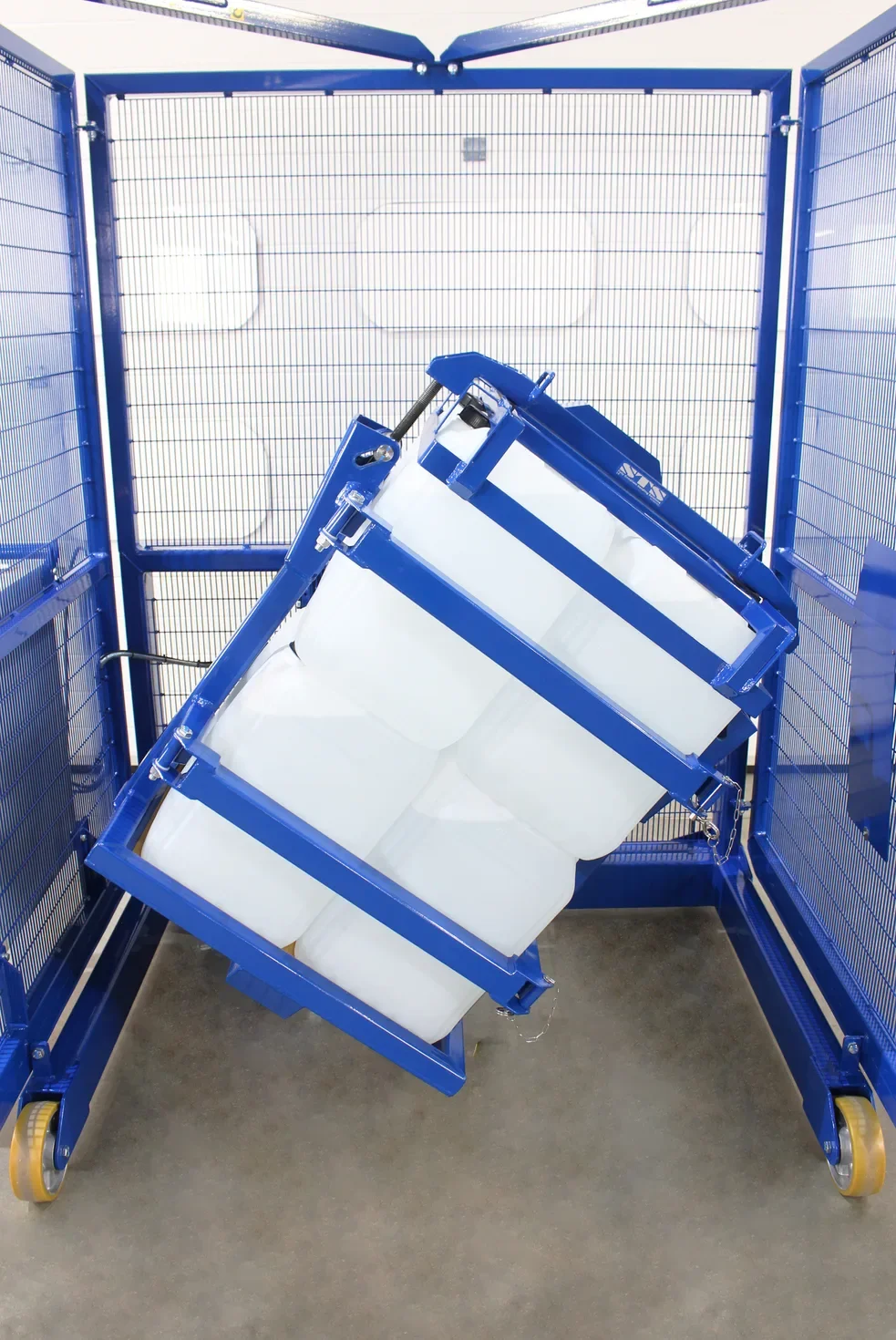

Head assembly
The jerrycan mixer head assembly has been designed to be robust and simple to use. Operators load eight containers into the head, close the front securing bars and place the top clamp over the jerrycans. A bar is used to clamp down the whole assembly ensuring a safe and secure load during mixing. The reverse of this process is carried out to remove the jerrycans from the mixing unit.

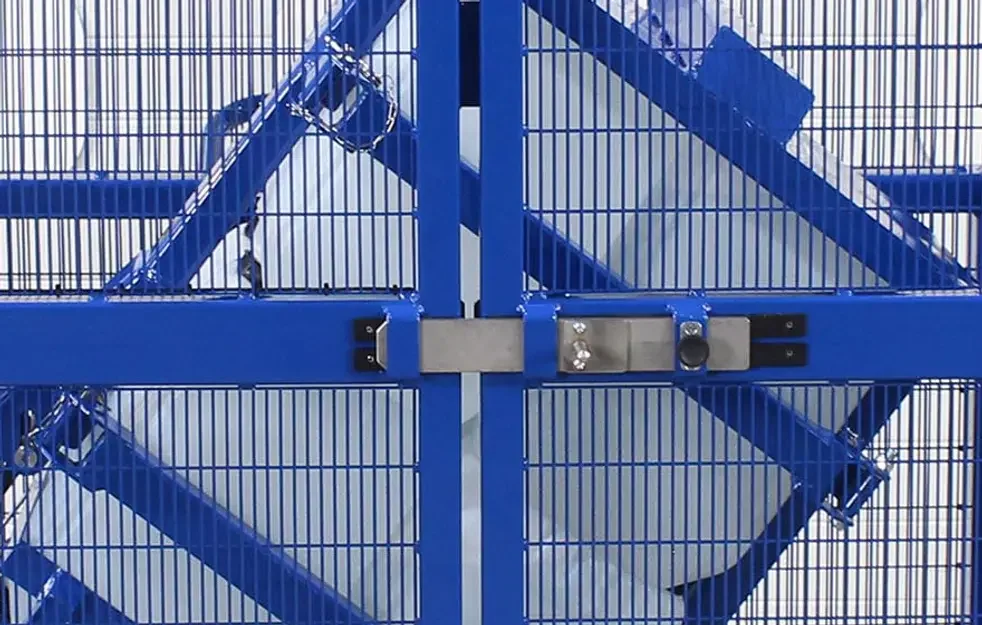

Fully compliant safety guarding
We manufacture each jerrycan mixer with a fully-compliant guarding arrangement as standard. The guarding protects operators from four sides preventing access to the rotating jerrycans during mixing. Safety guarding is of paramount importance and is a mandatory requirement, without full guarding it is difficult to write a credible workplace risk assessment.

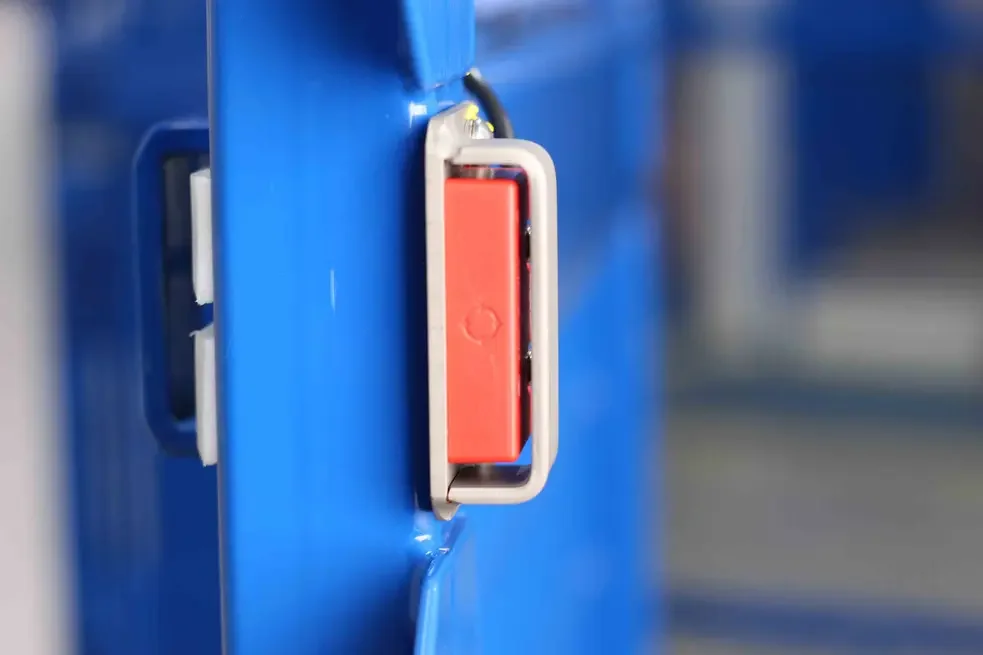

Safety gate interlock
Safety and compliance are key priorities for all companies. This model utilises a safety gate interlock, this prevents operators from being able to rotate the jerrycans with the gates of the mixer open. The correct way to stop the mixer while it is running is by pressing the 'stop' button on the control panel. The safety gate interlock stops the jerrycans from rotating should the gates be opened during a mix cycle.
-
Rated Capacity
551.15 lb. (250kg)Container compatibility
Suitable for 8 × 6.6 Gallon (25 liter) plastic jerry cans
Rotation RPM
10 RPM (as standard)
Power requirements
Mains 230V (or 120V), single phase, 16A
Duty cycle
Continuous 360° rotation
Safety gate interlock and full guarding
Yes
Emergency stop button
Yes
Mix timer and speed adjustment
Yes
Construction
Mild steel construction
Metal preparation and surface finish
Grit blasted mild steel, primer and polyester powder coated
Powder coat color
RAL 5010 (blue)
Mobility
Wheels fitted for easy positioning, jacking feet also supplied for static positioning
Compliance
CE / UKCA
