Stainless Steel Drum Lifter (Corner)

Product Code: DTP05-R500-SS

image of the lazer cut adjustable drum gripper

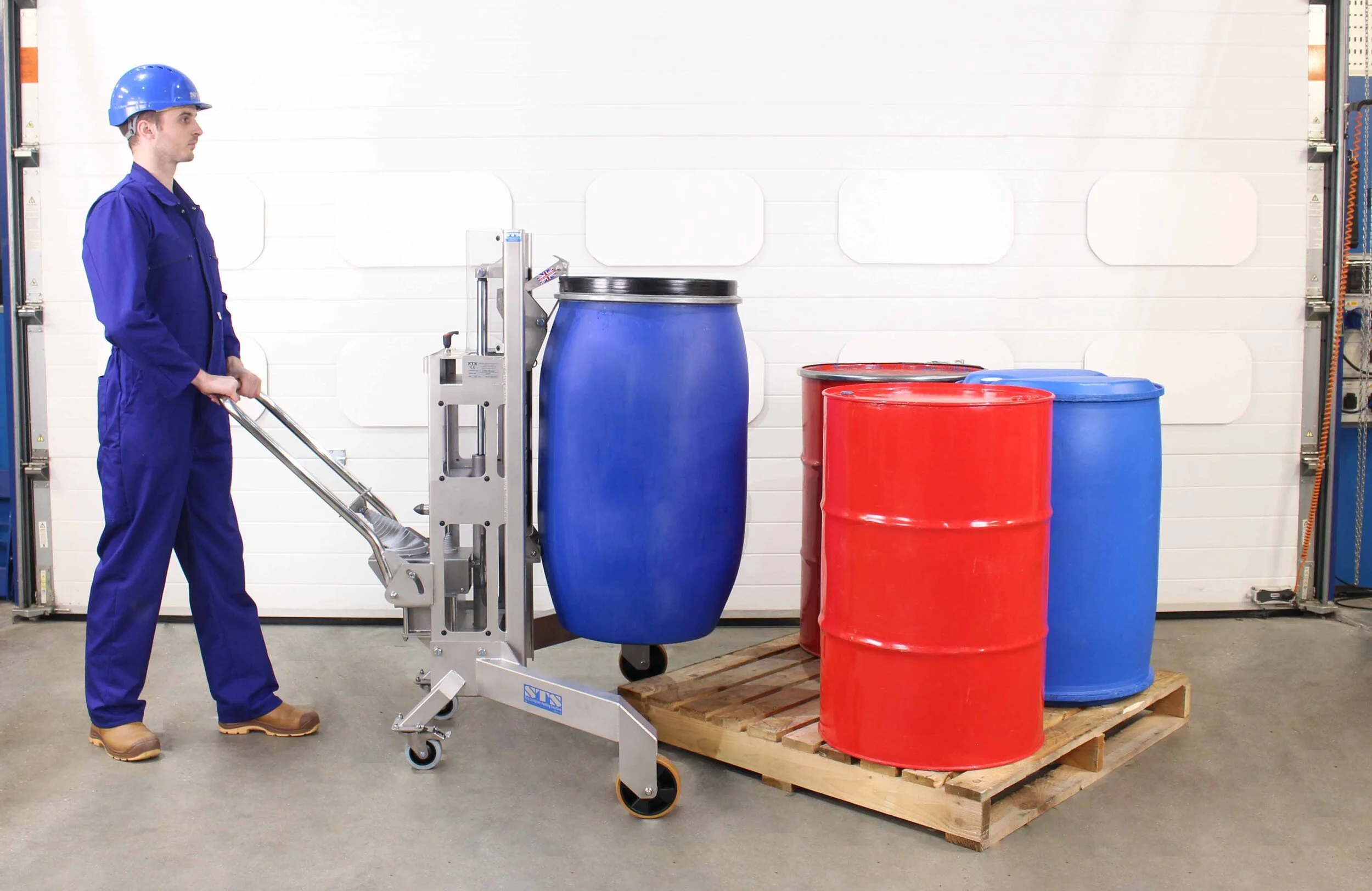

This Stainless Steel Corner Drum Palletizer approaches the corner of a pallet. It is important that the corner of a pallet is accessible to make the most of this machine. It has been designed to have a smaller footprint and a lighter weight design then our two other models. Drums can be palletized on and off pallets quickly and efficiently using this machine.

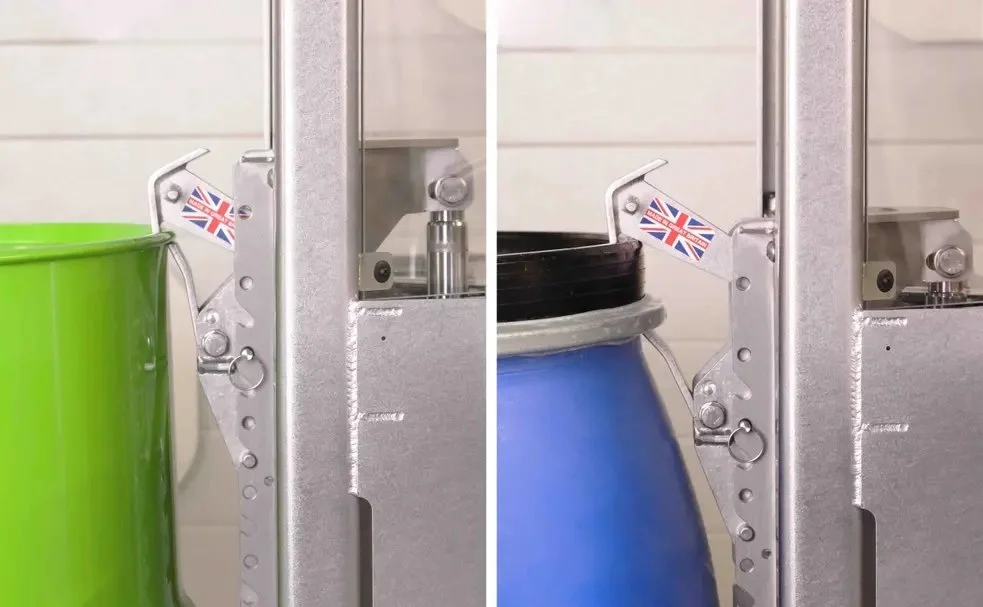

Height Adjustable Drum Gripper

The stainless-steel ladder rack and universal catch allows this drum palletizer to be adjusted to accommodate different drums sizes from 13 to 58 gallons (50-220 liters)made from either steel, plastic or fiberboard materials. Operators can make adjustments to the drum catch at the front of the palletizer by simply adjusting the position of the top hook to work with different drum lips.

Manual Hydraulic Pump

operator using the manual hydraulic lift to pick up a 55 gallon steel drum from the corner of a pallet

Every hydraulic pump assembly is manufactured by qualified technicians to ensure they are clean and reliable. The aluminum pump assembly supplies hydraulic oil to a sheaved ram assembly, when operators pump the handle at the rear of the stainless lifter the drum is raised up off the pallet or ground. During the manufacturing of the drum palletizers, engineers test and inspect all components to ensure they work smoothly and effectively throughout the life of the unit.

A close up image of the corner straddle and chemical resistant wheels on the corner drum depalletizer.

This product performs well in all conditions due to the high-quality wheels fitted. We fit rubber-sealed (RS) precision bearings which offer long-lasting wheel performance for tough work environments. To get the most out of this palletizer we recommend using it on flat and level ground.

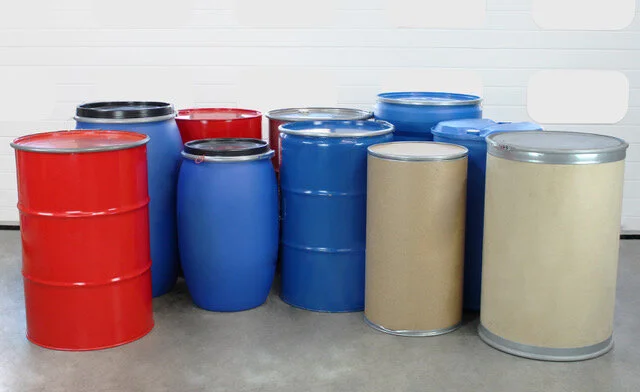

Handles a wide range of drum types

The stainless steel corner palletizer can handle a wide variety of drum types and sizes – especially useful if you handle different types of drums on a daily basis. For a detailed breakdown of the drums with which this product is compatible, please see the technical specification below. If the drums you use aren’t in the document, contact us and we can offer advice and guidance.

Option and Upgrades

  • a person is moving a drum with a stainless steel corner drum lifter

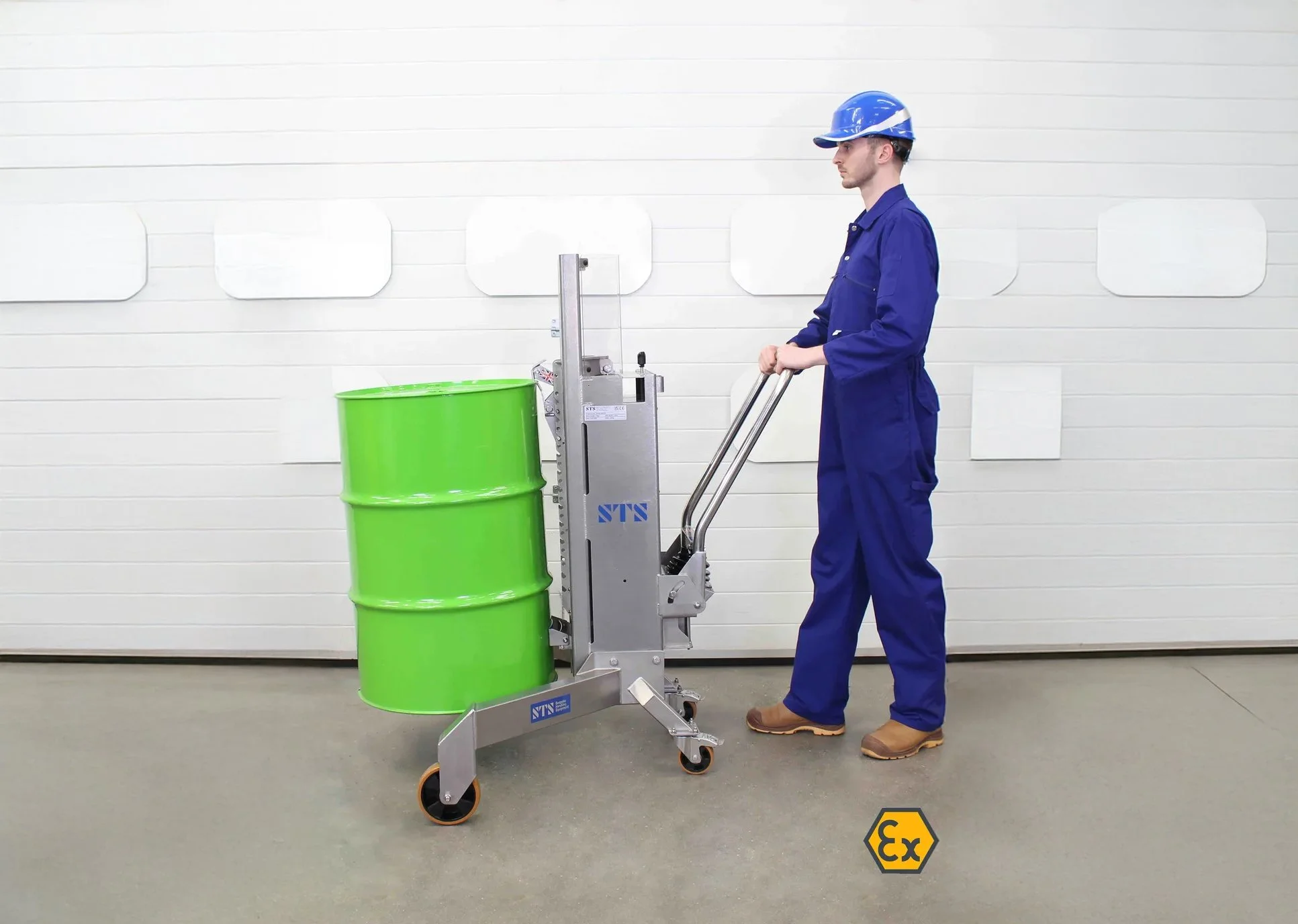

    ATEX for Hazardous & Explosive Locations

    ATEX certified for gas and dust zones

    We provide a fully certified 'Ex' rated drum lifter for use in flammable and explosive areas. These models utilize anti-static and conductive components to ensure safety and conformity. We also ensure full electrical continuity throughout the machine to dissipate static charges should they occur. Our ATEX Counterbalanced Drum Lifter is suitable for use in classified zones 1, 2, 21, and 22.

    'Ex' Rated model

  • detail of push button elecectric hydraulic lift control panel on the corner drum lifter

    Push-button electric-hydraulic lift

    If you need to handle a large quantity of drums each day, you may want to consider our electric lift upgrade. The battery-powered system allows operators to move more drums per hour by eliminating the need to pump the manual lift handle. The push-button lift controls are simple and easy to use and enhance productivity. The onboard batteries have plenty of power, allowing hundreds of drum movements per charge. To charge the lifter, simply connect the mains-powered battery charger to the unit.

  • image of the digital weigh scale attached to the drum lifter

    Integrated load-cell weighing system

    Our integrated weighing system has an accuracy of +/- 3.5oz (0.1kg). This system streamlines operations by weighing drums whilst lifting them, eliminating the need for separate floor scales. This system improves efficiency and helps operators identify over- or under-filled drums early, ensuring smoother workflows and enhanced quality control.

  • drum lifter featuring a custom built attachment for moving uniquely shaped drums

    Custom tools for uncommon drum types

    We design and manufacture a range of bespoke attachments and tools to tackle challenging drum-lifting scenarios. Whether it's large screw-top drums typically used for transporting olives and pickles, or bespoke plastic drums designed for the pharmaceutical industry, we are available to offer assistance. With over 25 years of experience, our team is best placed to offer safe and efficient drum lifting solutions.

Technical Specifications

  • safe working load (SWL) 770lb. (350kg)

  • Lift stroke 19.68” (500mm)

  • 1Under-drum clearance 16.5” (420mm)

  • 13-58 gallons (50-220 liters)steel, plastic and fiberboard

  • hydraulic 17cc hand-operated pump with lowering valve

  • stainless steel 304-grade chassis, steel ram with stainless steel shroud (sealed)

  • stainless steel rack assembly and drum gripper

  • polycarbonate clear polycarbonate guarding

  • Front wheel Fixed 6.29” (160mm), precision bearings

  • Rear wheel braked castors 3.93” (100mm), precision bearings

  • Wheels are aluminum centered with either rubber or polyurethane tires

  • Unladen weight 211.6lb. (96kg)

  • Turning Circle 49.6” (1260mm)

All products are covered by a 2-year warranty on parts and 10 years technical support
